Georg Fischer ecoFIT BF Stub Flange - 16 Bar

Skip to the beginning of the images gallery

Useful Information

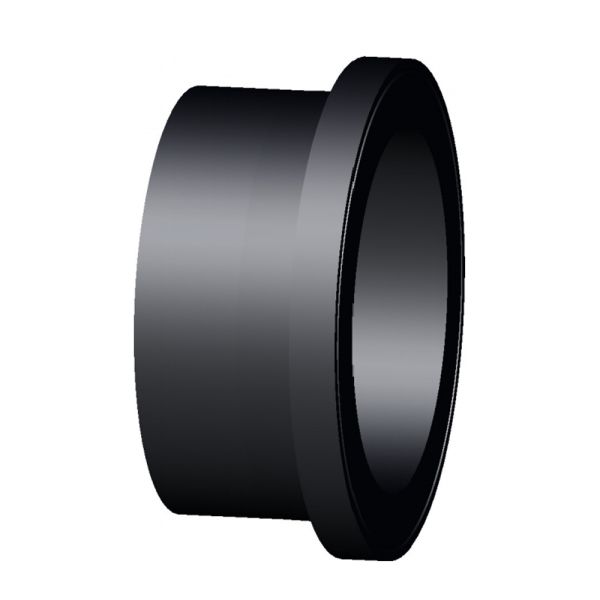

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

20mm to 225mm fittings are Infrared (IR Plus^®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	7 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	20 - 800mm
Colour	Black - RAL 9005
Type A	Without Chamfer
Type B	With Chamfer

GF-ecofit-bf-long-stub-flange-diagram

Product Code	d (mm)	d1 (mm)	d2 (mm)	d3 (mm)	d4 (mm)	L (mm)	L1 (mm)	L2 (mm)	Type (mm)	e (mm)	Weight (kg)
401761	20	26	45	-	16	50	29	7	A	1.9	0.016
401762	25	32	58	-	20	52	27	9	A	2.3	0.034
401763	32	40	68	-	26	54	28	10	A	2.9	0.046
401764	40	49	78	-	32	55	25	11	A	3.7	0.067
401765	50	60	88	-	40	62	32	12	A	4.6	0.098
401766	63	75	102	-	49	68	38	14	A	5.8	0.157
401767	75	89	122	66	58	80	43	16	B	6.8	0.258
401768	90	105	138	78	70	80	42	17	B	8.2	0.347
401769	110	125	158	100	87	80	41	18	B	10.0	0.471
401770	125	132	158	114	99	82	35	25	B	11.4	0.517
401771	140	155	188	127	111	89	42	25	B	12.7	0.780
401772	160	175	212	151	127	92	40	25	B	14.6	0.973
401773	180	180	212	154	148	92	40	30	B	16.4	1.077
401774	200	232	268	203	174	100	35	32	B	18.2	1.734
401775	225	235	268	210	196	100	35	32	B	20.5	1.772
401776	250	285	320	252	203	120	45	35	B	22.7	2.871
401777	280	291	320	265	228	120	45	37	B	25.4	3.760
401778	315	335	370	300	256	150	50	50	B	28.6	4.925
*401779	355	373	430	342	284	162	70	40	B	32.2	7.000
*401780	400	427	482	387	320	172	70	46	B	36.3	9.500
*401781	450	514	585	400	360	225	105	60	B	40.9	18.200
*401782	500	530	585	442	400	231	105	60	B	45.4	18.700
*401783	560	615	684	490	458	135	20	60	B	50.8	19.380
*401784	630	642	684	545	516	135	40	60	B	57.2	16.500
*401785	710	737	800	-	581	120	20	60	A	64.5	21.586
*401786	800	840	905	-	655	120	18	65	A	72.6	28.505

*Not suitable for butterfly valves
