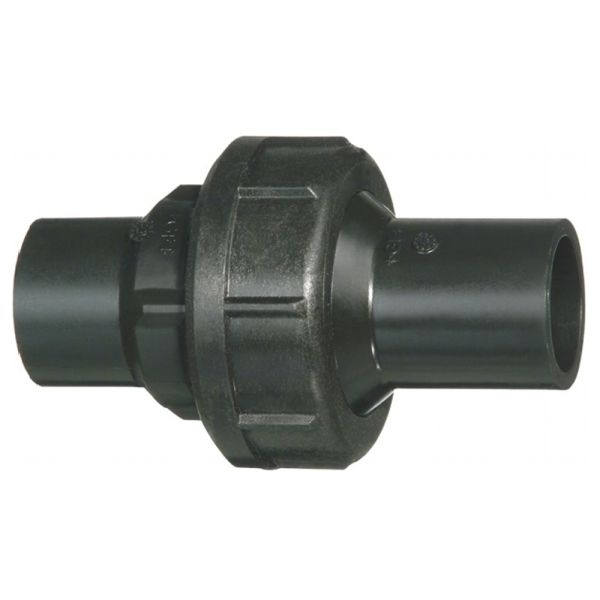

Georg Fischer ecoFIT BF Union EPDM - 16 Bar

Loading...
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

These fittings are infrared welding compatible (IR Plus®) and use conventional butt-welding according to DVS 2207.

Pressure Rating up to 16 bar
Temperature Range -50°C to +60°C
Sizes 20 - 110mm
Gaskets EPDM
Colour Black - RAL 9005

GF-butt-fusion-union-diagram

Product Code d (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) L4 (mm) D (mm) e (mm) G (inch) Weight (kg)
401887 20 107 54 53 26 38 48 1.9 1 0.048
401888 25 113 57 56 26 42 58 2.3 1 1/4 0.078
401889 32 119 60 59 25 41 65 3.0 1 1/2 0.108
401890 40 126 63 63 25 42 79 3.7 2 0.176
401891 50 131 66 66 25 44 91 4.6 2 1/4 0.241
401892 63 137 69 68 25 45 111 5.8 2 3/4 0.402
*401893 75 132 66 66 24 34 135 6.8 S107,5x3.6 0.537
*401894 90 131 66 66 24 45 135 8.2 S107,5x3.6 0.540
*401895 110 131 66 66 25 40 158 10.0 S127,5x3.6 0.783

*Fittings pressure rated to 10 bar


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401887GF ecoFIT BF PE Union EPDM 16 Bar 20mm £22.83 20%
£18.26
401888GF ecoFIT BF PE Union EPDM 16 Bar 25mm £28.13 20%
£22.50
401889GF ecoFIT BF PE Union EPDM 16 Bar 32mm £29.14 20%
£23.31
401890GF ecoFIT BF PE Union EPDM 16 Bar 40mm £41.14 20%
£32.91
401891GF ecoFIT BF PE Union EPDM 16 Bar 50mm £51.18 20%
£40.94
401892GF ecoFIT BF PE Union EPDM 16 Bar 63mm £67.42 20%
£53.94
401893GF ecoFIT BF PE Union EPDM 16 Bar 75mm £107.95 20%
£86.36
401894GF ecoFIT BF PE Union EPDM 16 Bar 90mm £138.32 20%
£110.66
401895GF ecoFIT BF PE Union EPDM 16 Bar 110mm £177.08 20%
£141.66
