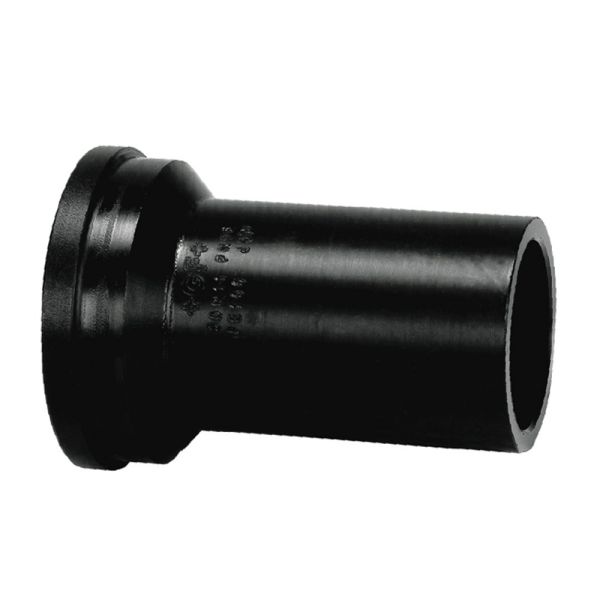

Georg Fischer ecoFIT BF Union End Long - 16 Bar

Georg Fischer ecoFIT BF Union End Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

These fittings are infrared welding compatible (IR Plus^®) and use conventional butt-welding according to DVS 2207.

Pressure Rating	up to 16 bar
Temperature Range	-50°C to +60°C
Sizes	20 - 63mm
Colour	Black - RAL 9005

GF-butt-fusion-union-end-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	D (mm)	e (mm)	Weight (kg)
401910	20	67	52	30	1.9	0.006
401911	25	71	53	39	2.3	0.019
401912	32	73	55	45	2.9	0.027
401913	40	81	60	57	3.7	0.048
401914	50	87	66	63	4.6	0.069
401915	63	93	70	78	5.8	0.120

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401910	GF ecoFIT BF PE Union End Long 16 Bar 20mm	£6.03	20%	£4.82
401911	GF ecoFIT BF PE Union End Long 16 Bar 25mm	£7.29	20%	£5.83
401912	GF ecoFIT BF PE Union End Long 16 Bar 32mm	£9.10	20%	£7.28
401913	GF ecoFIT BF PE Union End Long 16 Bar 40mm	£24.70	20%	£19.76
401914	GF ecoFIT BF PE Union End Long 16 Bar 50mm	£24.48	20%	£19.58
401915	GF ecoFIT BF PE Union End Long 16 Bar 63mm	£35.89	20%	£28.71
