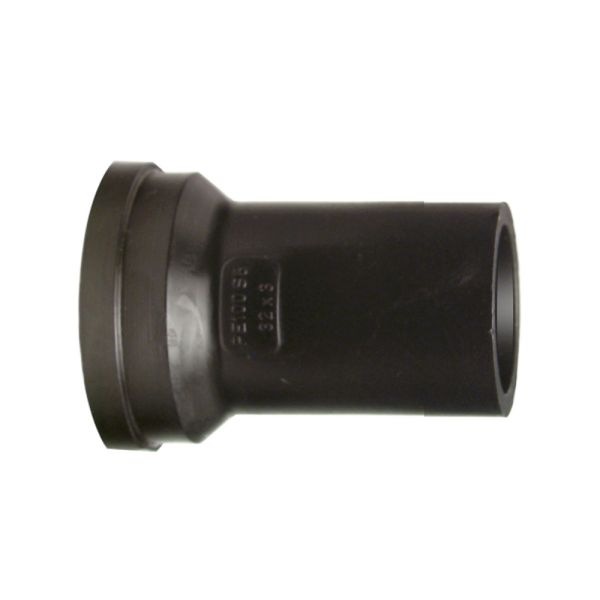

Georg Fischer ecoFIT BF Union End - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
These fittings are infrared welding compatible (IR Plus®) and use conventional butt-welding according to DVS 2207.
| Pressure Rating | up to 16Â bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 20 - 110mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | L1 (mm) | D (mm) | e (mm) | Weight (kg) |
| 401905 | 20 | 54 | 38 | 30 | 1.9 | 0.011 |
| 401906 | 25 | 57 | 42 | 39 | 2.3 | 0.018 |
| 401907 | 32 | 60 | 41 | 45 | 2.9 | 0.027 |
| 401908 | 40 | 63 | 42 | 57 | 3.7 | 0.044 |
| 401909 | 50 | 66 | 44 | 63 | 4.6 | 0.061 |
| 401910 | 63 | 69 | 45 | 78 | 5.8 | 0.100 |
| *401911 | 75 | 66 | 34 | 101 | 6.8 | 0.147 |
| *401912 | 90 | 66 | 55 | 101 | 8.2 | 0.156 |
| *401913 | 110 | 66 | 55 | 121 | 10.0 | 0.226 |
*Fittings pressure rated to 10 bar
