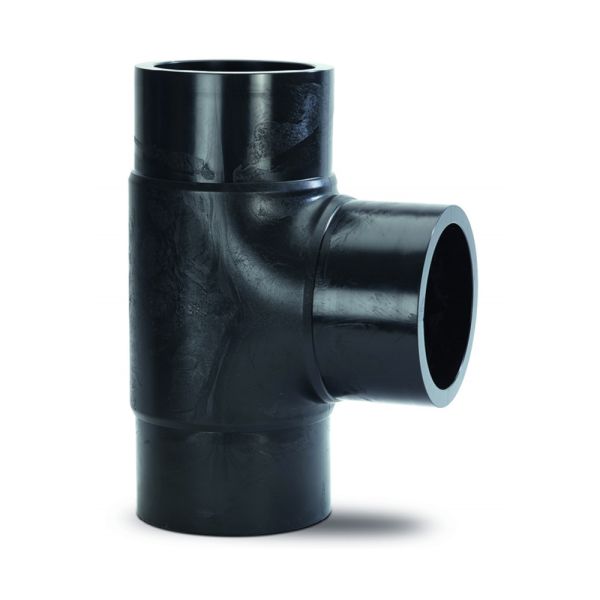

Georg Fischer ecoFIT BF Tee 90° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	20 - 800mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-tee-90-diagram

Product Code	d (mm)	L (mm)	z (mm)	z1 (mm)	e (mm)	Weight (kg)
401032	20	52	150	75	3.0	0.038
401033	25	52	160	80	3.0	0.054
401034	32	54	170	85	3.0	0.077
401035	40	57	190	95	3.7	0.130
401036	50	63	210	105	4.6	0.214
401037	63	65	230	115	5.8	0.376
401038	75	72	264	132	6.8	0.599
401039	90	81	300	150	8.2	1.021
401040	110	86	330	165	10.0	1.612
401041	125	92	366	183	11.4	2.420
401042	140	92	393	193	12.7	3.090
401043	160	102	420	210	14.6	4.403
401044	180	107	460	230	16.4	6.014
401045	200	117	500	250	18.2	8.480
401046	225	122	540	270	20.5	11.507
401047	250	130	575	288	22.7	14.099
401048	280	139	615	308	25.4	18.670
401049	315	150	695	346	28.6	26.150
401050	355	170	820	410	32.3	38.900
401051	400	190	900	450	36.4	53.400
401052	450	200	980	490	40.9	73.400
401053	500	220	1070	535	45.5	98.500
401054	560	245	1200	600	50.9	142.000
401055	630	265	1300	650	57.3	205.500
401056	710	450	1720	860	64.5	318.698
401057	800	450	1780	890	72.6	409.142

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401032	GF ecoFIT BF PE Tee 90° Long 16 Bar 20mm	£10.10	20%	£8.08
401033	GF ecoFIT BF PE Tee 90° Long 16 Bar 25mm	£11.61	20%	£9.29
401034	GF ecoFIT BF PE Tee 90° Long 16 Bar 32mm	£13.85	20%	£11.08
401035	GF ecoFIT BF PE Tee 90° Long 16 Bar 40mm	£16.61	20%	£13.29
401036	GF ecoFIT BF PE Tee 90° Long 16 Bar 50mm	£21.97	20%	£17.58
401037	GF ecoFIT BF PE Tee 90° Long 16 Bar 63mm	£29.94	20%	£23.95
401038	GF ecoFIT BF PE Tee 90° Long 16 Bar 75mm	£45.55	20%	£36.44
401039	GF ecoFIT BF PE Tee 90° Long 16 Bar 90mm	£70.16	20%	£56.13
401040	GF ecoFIT BF PE Tee 90° Long 16 Bar 110mm	£99.51	20%	£79.61
401041	GF ecoFIT BF PE Tee 90° Long 16 Bar 125mm	£140.45	20%	£112.36
401042	GF ecoFIT BF PE Tee 90° Long 16 Bar 140mm	£212.17	20%	£169.74
401043	GF ecoFIT BF PE Tee 90° Long 16 Bar 160mm	£246.22	20%	£196.98
401044	GF ecoFIT BF PE Tee 90° Long 16 Bar 180mm	£348.24	20%	£278.59
401045	GF ecoFIT BF PE Tee 90° Long 16 Bar 200mm	£501.25	20%	£401.00
401046	GF ecoFIT BF PE Tee 90° Long 16 Bar 225mm	£593.83	20%	£475.06
401047	GF ecoFIT BF PE Tee 90° Long 16 Bar 250mm	£843.02	20%	£674.42
401048	GF ecoFIT BF PE Tee 90° Long 16 Bar 280mm	£1,083.94	20%	£867.15
401049	GF ecoFIT BF PE Tee 90° Long 16 Bar 315mm	£1,619.10	20%	£1,295.28
401050	GF ecoFIT BF PE Tee 90° Long 16 Bar 355mm	£2,107.42	20%	£1,685.94
401051	GF ecoFIT BF PE Tee 90° Long 16 Bar 400mm	£3,149.53	20%	£2,519.62
401052	GF ecoFIT BF PE Tee 90° Long 16 Bar 450mm	£4,453.90	20%	£3,563.12
401053	GF ecoFIT BF PE Tee 90° Long 16 Bar 500mm	£5,653.55	20%	£4,522.84
401054	GF ecoFIT BF PE Tee 90° Long 16 Bar 560mm	£9,877.97	20%	£7,902.38
401055	GF ecoFIT BF PE Tee 90° Long 16 Bar 630mm	£13,206.86	20%	£10,565.49
401056	GF ecoFIT BF PE Tee 90° Long 16 Bar 710mm	£45,540.49	20%	£36,432.39
401057	GF ecoFIT BF PE Tee 90° Long 16 Bar 800mm	£58,205.94	20%	£46,564.75
