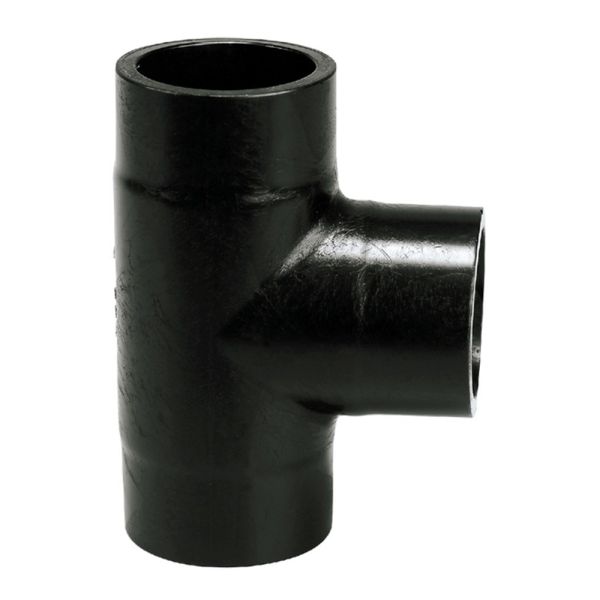

Georg Fischer ecoFIT BF Tee 90° - 10 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The 50mm to 225mm fittings are Infrared (IR Plus^®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	10 bar
Temperature Range	-50°C to +60°C
Sizes	50 - 500mm
Colour	Black - RAL 9005

GF-bf-tee-90-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
401560	50	90	57	2.9	0.136
401561	63	107	64	3.6	0.187
401562	75	74	20	4.8	0.232
401563	90	90	20	5.6	0.408
401564	110	110	20	6.9	0.724
401565	125	125	52	7.1	1.169
401566	140	157	62	8.0	1.805
401567	160	160	57	9.1	2.375
401568	180	214	96	10.2	4.095
401569	200	220	93	11.4	5.145
401570	225	225	76	12.8	7.140
401571	250	225	67	14.2	7.670
401572	280	264	86	15.9	10.900
401573	315	282	87	17.9	14.870
401574	355	345	105	21.1	21.800
401575	400	365	105	23.7	28.600
401576	450	425	135	26.7	42.400
401577	500	470	155	29.7	57.600

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401560	GF ecoFIT BF PE Tee 90° 10 Bar 63mm	£18.49	20%	£14.79
401561	GF ecoFIT BF PE Tee 90° 10 Bar 75mm	£46.32	20%	£37.06
401562	GF ecoFIT BF PE Tee 90° 10 Bar 90mm	£46.32	20%	£37.06
401563	GF ecoFIT BF PE Tee 90° 10 Bar 110mm	£75.52	20%	£60.42
401564	GF ecoFIT BF PE Tee 90° 10 Bar 125mm	£95.47	20%	£76.38
401565	GF ecoFIT BF PE Tee 90° 10 Bar 140mm	£133.29	20%	£106.63
401566	GF ecoFIT BF PE Tee 90° 10 Bar 160mm	£134.33	20%	£107.46
401567	GF ecoFIT BF PE Tee 90° 10 Bar 180mm	£259.07	20%	£207.26
401568	GF ecoFIT BF PE Tee 90° 10 Bar 200mm	£360.62	20%	£288.50
401569	GF ecoFIT BF PE Tee 90° 10 Bar 225mm	£395.84	20%	£316.67
401570	GF ecoFIT BF PE Tee 90° 10 Bar 250mm	£550.54	20%	£440.43
401571	GF ecoFIT BF PE Tee 90° 10 Bar 280mm	£628.80	20%	£503.04
401572	GF ecoFIT BF PE Tee 90° 10 Bar 315mm	£837.96	20%	£670.37
401573	GF ecoFIT BF PE Tee 90° 10 Bar 355mm	£1,271.95	20%	£1,017.56
401574	GF ecoFIT BF PE Tee 90° 10 Bar 400mm	£1,970.23	20%	£1,576.18
401575	GF ecoFIT BF PE Tee 90° 10 Bar 450mm	£2,836.87	20%	£2,269.50
401576	GF ecoFIT BF PE Tee 90° 10 Bar 500mm	£3,652.48	20%	£2,921.98
