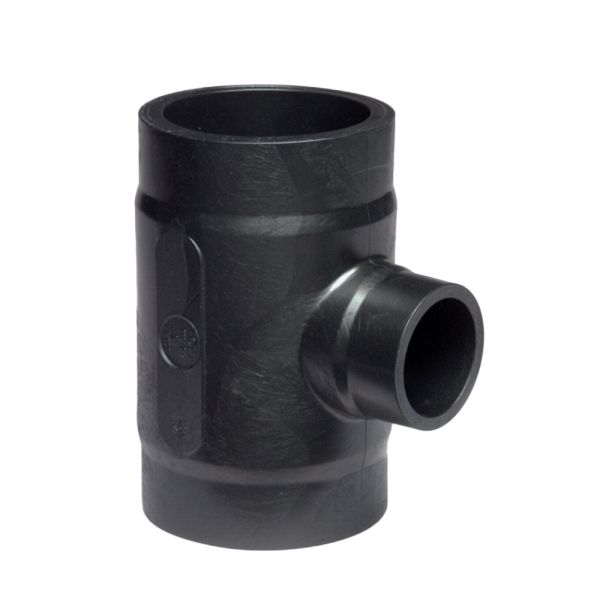

Georg Fischer ecoFIT BF Reducing Tee 90° - 16 Bar

Loading...
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The 90mm x 63mm to 225 x 160mm fittings are Infrared (IR Plus®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating 16 bar
Temperature Range -50°C to +60°C
Sizes 90 x 63mm - 250 x 160mm
Colour Black - RAL 9005

GF-bf-reducing-tee-90-diagram

Product Code d (mm) d1 (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) e (mm) e1 (mm) Weight (kg)
401577 90 63 80 85 25 25 8.2 5.8 0.448
401578 90 75 80 85 25 25 8.2 6.8 0.462
401579 110 32 90 95 30 25 10.0 2.9 0.685
401580 110 50 90 95 30 25 10.0 4.6 0.694
401581 110 63 90 95 30 25 10.0 5.8 0.709
401582 110 75 90 95 30 25 10.0 6.8 0.717
401583 110 90 90 95 30 25 10.0 8.2 0.734
401584 160 63 142 135 50 30 14.6 5.8 2.269
401585 160 75 142 135 50 30 14.6 6.8 2.255
401586 160 90 142 135 50 30 14.6 8.2 2.317
401587 160 110 142 135 50 30 14.6 10.0 2.353
401588 225 90 155 165 40 30 20.5 8.2 4.759
401589 225 110 155 165 40 30 20.5 10.0 4.796
401590 225 160 155 165 40 30 20.5 14.6 4.854
401591 250 110 228 197 140 37 22.7 10.0 8.199
401592 250 160 229 219 117 60 22.7 14.6 8.564



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401577GF ecoFIT BF PE Reducing Tee 90° 16 Bar 90mm x 63mm £55.50 20%
£44.40
401578GF ecoFIT BF PE Reducing Tee 90° 16 Bar 90mm x 75mm £55.50 20%
£44.40
401579GF ecoFIT BF PE Reducing Tee 90° 16 Bar 110mm x 32mm £77.98 20%
£62.38
401580GF ecoFIT BF PE Reducing Tee 90° 16 Bar 110mm x 50mm £79.69 20%
£63.75
401581GF ecoFIT BF PE Reducing Tee 90° 16 Bar 110mm x 63mm £80.74 20%
£64.59
401582GF ecoFIT BF PE Reducing Tee 90° 16 Bar 110mm x 75mm £81.31 20%
£65.05
401583GF ecoFIT BF PE Reducing Tee 90° 16 Bar 110mm x 90mm £81.31 20%
£65.05
401584GF ecoFIT BF PE Reducing Tee 90° 16 Bar 160mm x 63mm £208.47 20%
£166.78
401585GF ecoFIT BF PE Reducing Tee 90° 16 Bar 160mm x 75mm £210.18 20%
£168.14
401586GF ecoFIT BF PE Reducing Tee 90° 16 Bar 160mm x 90mm £210.18 20%
£168.14
401587GF ecoFIT BF PE Reducing Tee 90° 16 Bar 160mm x 110mm £213.29 20%
£170.63
401588GF ecoFIT BF PE Reducing Tee 90° 16 Bar 225mm x 90mm £493.79 20%
£395.03
401589GF ecoFIT BF PE Reducing Tee 90° 16 Bar 225mm x 110mm £499.11 20%
£399.29
401590GF ecoFIT BF PE Reducing Tee 90° 16 Bar 225mm x 160mm £499.11 20%
£399.29
401591GF ecoFIT BF PE Reducing Tee 90° 16 Bar 250mm x 110mm £507.21 20%
£405.77
401592GF ecoFIT BF PE Reducing Tee 90° 16 Bar 250mm x 160mm £517.64 20%
£414.11
