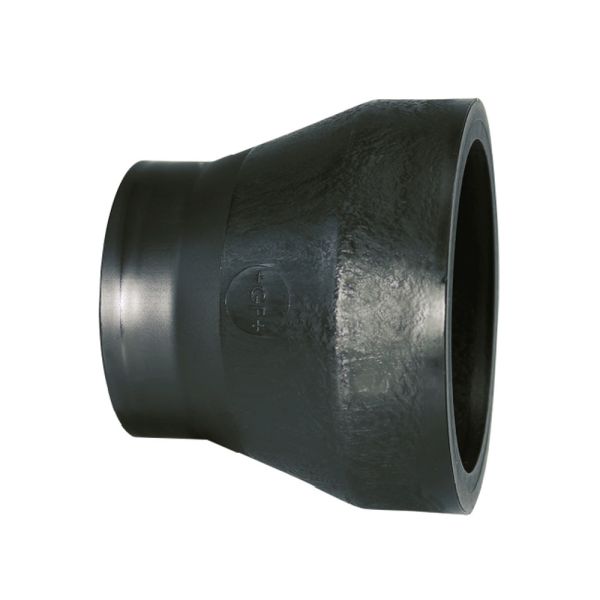

Georg Fischer ecoFIT BF Reducing Coupling - 16 Bar

Georg Fischer ecoFIT BF Reducing Coupling - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The 25mm x 20mm to 250 x 160mm fittings are Infrared (IR Plus^®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	16 bar
Temperature Range	-50°C to +60°C
Sizes	25 x 20mm - 710 x 630mm
Colour	Black - RAL 9005

GF-bf-reducing-coupling-diagram

Product Code	d (mm)	d1 (mm)	L (mm)	L1 (mm)	L2 (mm)	e (mm)	e1 (mm)	Weight (kg)
401613	25	20	50	20	18	2.3	1.9	0.008
401614	32	20	50	20	18	2.9	1.9	0.010
401615	32	25	50	20	18	2.9	2.3	0.006
401616	40	20	58	20	20	3.7	1.9	0.017
401617	40	25	55	20	18	3.7	2.3	0.017
401618	40	32	55	20	18	3.7	2.9	0.019
401619	50	25	60	20	18	4.6	2.3	0.025
401620	50	32	60	20	18	4.6	2.9	0.026
401621	50	40	60	20	18	4.6	3.7	0.032
401622	63	32	65	20	18	5.8	2.9	0.046
401623	63	40	65	20	18	5.8	3.7	0.051
401624	63	50	65	20	18	5.8	4.6	0.056
401625	75	40	68	20	20	6.8	3.7	0.070
401626	75	50	65	20	18	6.8	4.6	0.074
401627	140	110	110	35	28	12.7	10.0	0.437
401628	140	125	110	35	28	12.7	11.4	0.474
401629	160	110	120	40	25	14.6	10.0	0.612
401630	160	140	120	40	33	14.6	12.7	0.674
401631	180	90	145	50	40	16.4	8.2	0.825
401632	180	110	150	55	42	16.4	10.0	1.020
401633	180	125	143	52	40	16.4	11.4	1.020
401634	180	160	135	55	52	16.4	14.6	1.140
401635	200	160	150	50	35	18.2	14.6	1.247
401636	200	180	145	62	54	18.2	16.4	1.475
401637	225	110	171	55	45	20.5	10.0	1.559
401638	225	160	160	55	37	20.5	14.6	1.590
401639	225	180	160	64	59	22.7	20.5	1.800
401640	225	200	160	55	48	20.5	18.2	1.844
401641	250	160	177	65	53	20.5	14.6	2.305
401642	250	180	175	60	55	22.7	16.4	2.513
401643	250	200	180	60	60	22.7	18.2	2.450
401644	250	225	180	65	65	22.7	20.5	3.025
401645	280	200	205	70	50	25.4	18.2	3.540
401646	280	225	210	75	58	25.4	20.5	3.860
401647	315	200	225	80	50	28.6	20.5	3.996
401648	315	225	237	84	57	28.6	20.5	5.260
401649	315	250	236	86	64	28.6	22.7	5.415
401650	315	280	231	86	72	28.6	25.4	5.600
401651	710	500	190	84	40	64.5	45.4	24.157
401652	710	560	170	81	40	64.5	50.8	21.770
401653	710	630	140	71	40	64.5	57.2	17.845

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401613	GF ecoFIT BF PE Reducing Coupling 16 Bar 25mm x 20mm	£6.82	20%	£5.46
401614	GF ecoFIT BF PE Reducing Coupling 16 Bar 32mm x 20mm	£8.25	20%	£6.60
401615	GF ecoFIT BF PE Reducing Coupling 16 Bar 32mm x 25mm	£8.25	20%	£6.60
401616	GF ecoFIT BF PE Reducing Coupling 16 Bar 40mm x 20mm	£9.39	20%	£7.51
401617	GF ecoFIT BF PE Reducing Coupling 16 Bar 40mm x 25mm	£9.39	20%	£7.51
401618	GF ecoFIT BF PE Reducing Coupling 16 Bar 40mm x 32mm	£9.39	20%	£7.51
401619	GF ecoFIT BF PE Reducing Coupling 16 Bar 50mm x 25mm	£9.85	20%	£7.88
401620	GF ecoFIT BF PE Reducing Coupling 16 Bar 50mm x 32mm	£9.85	20%	£7.88
401621	GF ecoFIT BF PE Reducing Coupling 16 Bar 50mm x 40mm	£9.85	20%	£7.88
401622	GF ecoFIT BF PE Reducing Coupling 16 Bar 63mm x 32mm	£11.49	20%	£9.19
401623	GF ecoFIT BF PE Reducing Coupling 16 Bar 63mm x 40mm	£11.49	20%	£9.19
401624	GF ecoFIT BF PE Reducing Coupling 16 Bar 63mm x 50mm	£11.49	20%	£9.19
401625	GF ecoFIT BF PE Reducing Coupling 16 Bar 75mm x 40mm	£14.89	20%	£11.91
401626	GF ecoFIT BF PE Reducing Coupling 16 Bar 75mm x 50mm	£14.89	20%	£11.91
401627	GF ecoFIT BF PE Reducing Coupling 16 Bar 140mm x 110mm	£31.27	20%	£25.02
401628	GF ecoFIT BF PE Reducing Coupling 16 Bar 140mm x 125mm	£31.27	20%	£25.02
401629	GF ecoFIT BF PE Reducing Coupling 16 Bar 160mm x 110mm	£36.34	20%	£29.07
401630	GF ecoFIT BF PE Reducing Coupling 16 Bar 160mm x 140mm	£74.74	20%	£59.79
401631	GF ecoFIT BF PE Reducing Coupling 16 Bar 180mm x 90mm	£54.66	20%	£43.73
401632	GF ecoFIT BF PE Reducing Coupling 16 Bar 180mm x 110mm	£53.20	20%	£42.56
401633	GF ecoFIT BF PE Reducing Coupling 16 Bar 180mm x 125mm	£51.75	20%	£41.40
401634	GF ecoFIT BF PE Reducing Coupling 16 Bar 180mm x 160mm	£49.73	20%	£39.78
401635	GF ecoFIT BF PE Reducing Coupling 16 Bar 200mm x 160mm	£123.04	20%	£98.43
401636	GF ecoFIT BF PE Reducing Coupling 16 Bar 200mm x 180mm	£109.52	20%	£87.62
401637	GF ecoFIT BF PE Reducing Coupling 16 Bar 225mm x 110mm	£146.29	20%	£117.03
401638	GF ecoFIT BF PE Reducing Coupling 16 Bar 225mm x 160mm	£157.34	20%	£125.87
401639	GF ecoFIT BF PE Reducing Coupling 16 Bar 225mm x 180mm	£162.37	20%	£129.90
401640	GF ecoFIT BF PE Reducing Coupling 16 Bar 225mm x 200mm	£132.57	20%	£106.06
401641	GF ecoFIT BF PE Reducing Coupling 16 Bar 250mm x 160mm	£200.52	20%	£160.42
401642	GF ecoFIT BF PE Reducing Coupling 16 Bar 250mm x 180mm	£194.78	20%	£155.82
401643	GF ecoFIT BF PE Reducing Coupling 16 Bar 250mm x 200mm	£194.78	20%	£155.82
401644	GF ecoFIT BF PE Reducing Coupling 16 Bar 250mm x 225mm	£163.41	20%	£130.73
401645	GF ecoFIT BF PE Reducing Coupling 16 Bar 280mm x 200mm	£234.04	20%	£187.23
401646	GF ecoFIT BF PE Reducing Coupling 16 Bar 280mm x 225mm	£181.01	20%	£144.81
401647	GF ecoFIT BF PE Reducing Coupling 16 Bar 315mm x 200mm	£442.31	20%	£353.85
401648	GF ecoFIT BF PE Reducing Coupling 16 Bar 315mm x 225mm	£254.36	20%	£203.49
401649	GF ecoFIT BF PE Reducing Coupling 16 Bar 315mm x 250mm	£252.67	20%	£202.14
401650	GF ecoFIT BF PE Reducing Coupling 16 Bar 315mm x 280mm	£225.59	20%	£180.47
401651	GF ecoFIT BF PE Reducing Coupling 16 Bar 710mm x 500mm	£3,852.83	20%	£3,082.26
401652	GF ecoFIT BF PE Reducing Coupling 16 Bar 710mm x 560mm	£3,421.24	20%	£2,736.99
401653	GF ecoFIT BF PE Reducing Coupling 16 Bar 710mm x 630mm	£2,554.32	20%	£2,043.46
