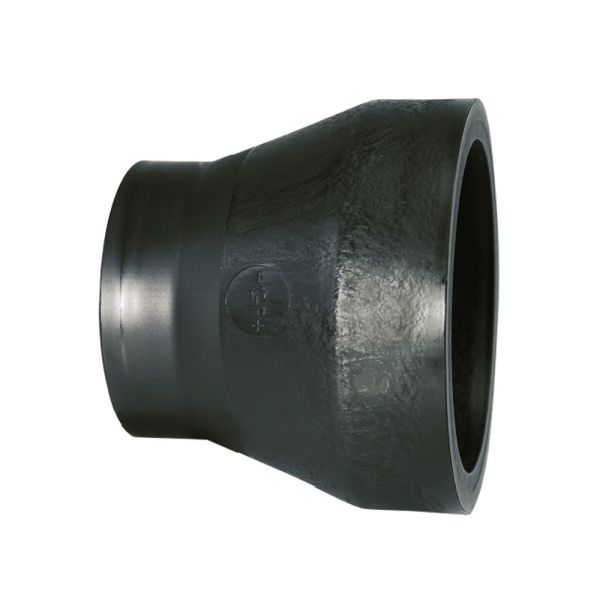

Georg Fischer ecoFIT BF Reducing Coupling - 10 Bar

Loading...
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The 63mm x 40mm to 225 x 200mm fittings are Infrared (IR Plus®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating 16 bar
Temperature Range -50°C to +60°C
Sizes 63 x 40mm - 1000 x 900mm
Colour Black - RAL 9005

GF-bf-reducing-coupling-diagram

Product Code d (mm) d1 (mm) L (mm) L1 (mm) L2 (mm) e (mm) e1 (mm) Weight (kg)
401687 63 40 65 16 45 3.6 2.3 0.036
401688 75 40 71 19 12 4.3 2.3 0.041
401689 75 50 65 20 20 4.3 2.9 0.049
401690 75 63 65 20 20 4.3 3.6 0.056
401691 90 63 75 20 19 5.1 3.6 0.083
401692 90 75 65 20 20 5.1 4.3 0.092
401693 110 75 89 28 18 6.3 4.3 0.157
401694 110 90 90 28 20 6.3 5.1 0.164
401695 125 110 100 40 40 7.1 6.3 0.275
401696 140 110 120 53 43 8.0 6.3 0.375
401697 140 125 124 54 43 8.0 7.1 0.395
401698 160 110 129 40 34 9.1 6.3 0.460
401699 160 140 125 49 38 9.1 8.0 0.525
401700 180 90 145 53 42 10.2 5.1 0.650
401701 180 110 150 55 42 10.2 6.3 0.680
401702 180 125 143 52 40 10.2 7.1 0.705
401703 180 160 135 55 52 10.2 9.1 0.750
401704 200 160 145 50 40 11.4 9.1 0.860
401705 200 180 145 62 54 11.4 10.2 0.955
401706 225 110 160 55 35 12.8 6.3 1.382
401707 225 160 160 55 40 12.8 9.1 1.120
401708 225 180 166 64 57 12.8 10.2 1.215
401709 225 200 171 55 50 12.8 11.4 1.234
401710 250 180 175 60 55 14.8 10.7 1.690
401711 250 200 180 60 60 14.8 11.9 1.899
401712 250 225 180 65 65 14.2 12.8 1.990
401713 280 200 205 70 50 16.6 11.9 2.585
401714 315 200 225 80 50 18.7 11.9 2.907
401715 315 250 234 88 64 17.9 14.2 3.695
401716 710 500 190 84 40 42.1 29.7 16.750
401717 710 560 170 81 40 42.1 33.2 15.014
401718 710 630 140 71 40 42.1 37.4 12.215
401719 800 560 200 85 40 47.4 33.2 22.731
401720 800 630 180 85 40 47.4 37.4 20.475
401721 800 710 150 78 40 47.4 42.1 16.774
401722 900 630 220 96 40 53.3 37.4 32.055
401723 900 710 190 89 40 53.3 42.1 27.731
401724 900 800 160 85 40 53.3 47.4 22.854
401725 1000 710 220 91 40 59.3 42.1 40.412
401726 1000 800 180 86 40 59.3 47.4 33.910
401727 1000 900 140 75 40 59.3 53.3 25.824



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401687GF ecoFIT BF PE Reducing Coupling 10 Bar 63mm x 40mm £7.67 20%
£6.14
401688GF ecoFIT BF PE Reducing Coupling 10 Bar 75mm x 40mm £13.32 20%
£10.66
401689GF ecoFIT BF PE Reducing Coupling 10 Bar 75mm x 50mm £19.27 20%
£15.42
401690GF ecoFIT BF PE Reducing Coupling 10 Bar 75mm x 63mm £15.71 20%
£12.57
401691GF ecoFIT BF PE Reducing Coupling 10 Bar 90mm x 63mm £25.66 20%
£20.53
401692GF ecoFIT BF PE Reducing Coupling 10 Bar 90mm x 75mm £20.73 20%
£16.58
401693GF ecoFIT BF PE Reducing Coupling 10 Bar 110mm x 75mm £25.93 20%
£20.74
401694GF ecoFIT BF PE Reducing Coupling 10 Bar 110mm x 90mm £25.93 20%
£20.74
401695GF ecoFIT BF PE Reducing Coupling 10 Bar 125mm x 110mm £33.97 20%
£27.18
401696GF ecoFIT BF PE Reducing Coupling 10 Bar 140mm x 110mm £42.05 20%
£33.64
401697GF ecoFIT BF PE Reducing Coupling 10 Bar 140mm x 125mm £42.05 20%
£33.64
401698GF ecoFIT BF PE Reducing Coupling 10 Bar 160mm x 110mm £48.26 20%
£38.61
401699GF ecoFIT BF PE Reducing Coupling 10 Bar 160mm x 140mm £48.26 20%
£38.61
401700GF ecoFIT BF PE Reducing Coupling 10 Bar 180mm x 90mm £54.66 20%
£43.73
401701GF ecoFIT BF PE Reducing Coupling 10 Bar 180mm x 110mm £49.73 20%
£39.78
401702GF ecoFIT BF PE Reducing Coupling 10 Bar 180mm x 125mm £51.75 20%
£41.40
401703GF ecoFIT BF PE Reducing Coupling 10 Bar 180mm x 160mm £49.74 20%
£39.79
401704GF ecoFIT BF PE Reducing Coupling 10 Bar 200mm x 160mm £123.04 20%
£98.43
401705GF ecoFIT BF PE Reducing Coupling 10 Bar 200mm x 180mm £109.52 20%
£87.62
401706GF ecoFIT BF PE Reducing Coupling 10 Bar 225mm x 110mm £156.64 20%
£125.31
401707GF ecoFIT BF PE Reducing Coupling 10 Bar 225mm x 160mm £154.23 20%
£123.38
401708GF ecoFIT BF PE Reducing Coupling 10 Bar 225mm x 180mm £161.35 20%
£129.08
401709GF ecoFIT BF PE Reducing Coupling 10 Bar 225mm x 200mm £129.20 20%
£103.36
401710GF ecoFIT BF PE Reducing Coupling 10 Bar 250mm x 180mm £189.97 20%
£151.98
401711GF ecoFIT BF PE Reducing Coupling 10 Bar 250mm x 200mm £174.54 20%
£139.63
401712GF ecoFIT BF PE Reducing Coupling 10 Bar 250mm x 225mm £166.11 20%
£132.89
401713GF ecoFIT BF PE Reducing Coupling 10 Bar 280mm x 200mm £228.08 20%
£182.46
401714GF ecoFIT BF PE Reducing Coupling 10 Bar 315mm x 200mm £291.73 20%
£233.38
401715GF ecoFIT BF PE Reducing Coupling 10 Bar 315mm x 250mm £234.62 20%
£187.70
401716GF ecoFIT BF PE Reducing Coupling 10 Bar 710mm x 500mm £3,619.59 20%
£2,895.67
401717GF ecoFIT BF PE Reducing Coupling 10 Bar 710mm x 560mm £3,061.59 20%
£2,449.27
401718GF ecoFIT BF PE Reducing Coupling 10 Bar 710mm x 630mm £2,146.11 20%
£1,716.89
401719GF ecoFIT BF PE Reducing Coupling 10 Bar 800mm x 560mm £4,191.06 20%
£3,352.85
401720GF ecoFIT BF PE Reducing Coupling 10 Bar 800mm x 630mm £3,532.09 20%
£2,825.67
401721GF ecoFIT BF PE Reducing Coupling 10 Bar 800mm x 710mm £2,680.63 20%
£2,144.50
401722GF ecoFIT BF PE Reducing Coupling 10 Bar 900mm x 630mm £6,529.53 20%
£5,223.62
401723GF ecoFIT BF PE Reducing Coupling 10 Bar 900mm x 710mm £5,787.02 20%
£4,629.62
401724GF ecoFIT BF PE Reducing Coupling 10 Bar 900mm x 800mm £4,704.15 20%
£3,763.32
401725GF ecoFIT BF PE Reducing Coupling 10 Bar 1000mm x 710mm £8,957.46 20%
£7,165.97
401726GF ecoFIT BF PE Reducing Coupling 10 Bar 1000mm x 800mm £7,532.53 20%
£6,026.02
401727GF ecoFIT BF PE Reducing Coupling 10 Bar 1000mm x 900mm £6,152.41 20%
£4,921.93
