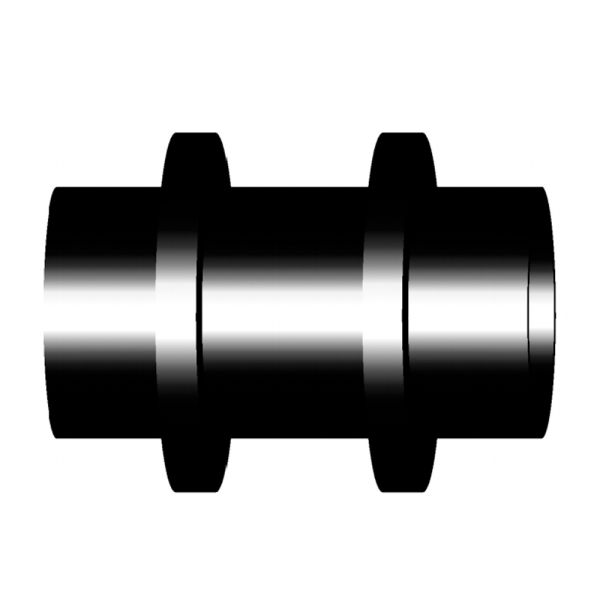

Georg Fischer ecoFIT BF Fixpoint Fitting - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene PE80 for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
These Fixpoint fittings are machined and infrared welding compatible (IR Plus®) up to 225mm.
| Pressure Rating | 10 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 40 - 630mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | e (mm) | Weight (kg) |
| 401852 | 63 | 90 | 122 | 30 | 42 | 10 | 4 | 0.144 |
| 401853 | 75 | 110 | 122 | 30 | 42 | 10 | 5 | 0.212 |
| 401854 | 90 | 125 | 122 | 30 | 42 | 10 | 5 | 0.279 |
| 401855 | 110 | 140 | 142 | 30 | 52 | 15 | 7 | 0.457 |
| 401856 | 125 | 160 | 152 | 35 | 52 | 15 | 7 | 0.618 |
| 401857 | 140 | 180 | 162 | 40 | 52 | 15 | 8 | 0.815 |
| 401858 | 160 | 200 | 162 | 40 | 52 | 15 | 10 | 1.014 |
| 401859 | 180 | 225 | 182 | 45 | 52 | 20 | 11 | 1.528 |
| 401860 | 200 | 250 | 182 | 45 | 52 | 20 | 12 | 1.887 |
| 401861 | 225 | 280 | 192 | 45 | 52 | 25 | 13 | 2.661 |
| 401862 | 250 | 280 | 212 | 50 | 62 | 25 | 15 | 2.796 |
| 401863 | 280 | 315 | 222 | 50 | 62 | 30 | 17 | 3.829 |
| 401864 | 315 | 355 | 222 | 50 | 62 | 30 | 19 | 4.871 |
| 401865 | 355 | 400 | 192 | 30 | 62 | 35 | 21 | 5.812 |
| 401866 | 400 | 450 | 212 | 30 | 72 | 40 | 24 | 8.180 |
| 401867 | 450 | 500 | 232 | 35 | 72 | 45 | 27 | 11.015 |
| 401868 | 500 | 560 | 252 | 40 | 72 | 50 | 30 | 15.251 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
