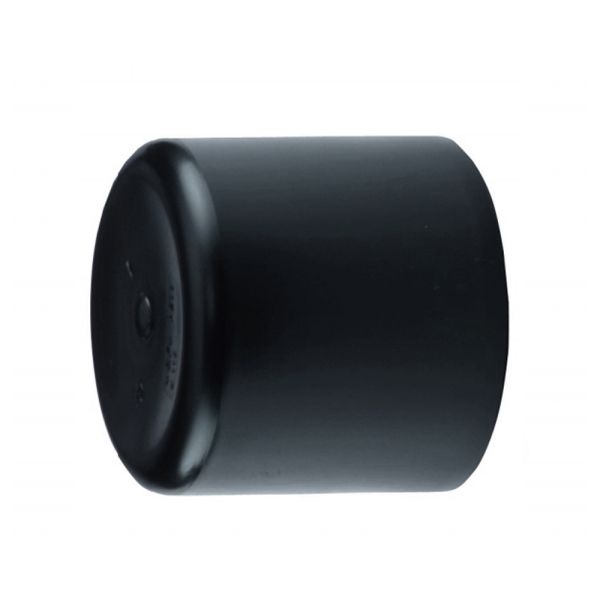

Georg Fischer ecoFIT BF End Cap Long - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
| Pressure Rating | 10 bar - Gas 16 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 20 - 630mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 401371 | 20 | 52 | 52 | 3.0 | 0.010 |
| 401372 | 25 | 52 | 52 | 3.0 | 0.015 |
| 401373 | 32 | 54 | 54 | 3.0 | 0.020 |
| 401374 | 40 | 57 | 57 | 3.7 | 0.033 |
| 401375 | 50 | 63 | 63 | 4.6 | 0.054 |
| 401376 | 63 | 65 | 65 | 5.8 | 0.086 |
| 401377 | 75 | 72 | 80 | 6.8 | 0.146 |
| 401378 | 90 | 81 | 90 | 8.2 | 0.240 |
| 401379 | 110 | 86 | 98 | 10.0 | 0.373 |
| 401380 | 125 | 92 | 105 | 11.4 | 0.546 |
| 401381 | 140 | 92 | 136 | 12.7 | 0.727 |
| 401382 | 160 | 102 | 120 | 14.6 | 1.034 |
| 401383 | 180 | 107 | 128 | 16.4 | 1.351 |
| 401384 | 200 | 115 | 138 | 18.2 | 1.845 |
| 401385 | 225 | 122 | 148 | 20.5 | 2.514 |
| 401386 | 250 | 130 | 205 | 22.7 | 3.927 |
| 401387 | 280 | 139 | 235 | 25.4 | 5.045 |
| 401388 | 315 | 150 | 255 | 28.6 | 6.861 |
| 401389 | 355 | 165 | 280 | 32.3 | 9.780 |
| 401390 | 400 | 180 | 310 | 36.4 | 13.370 |
| 401391 | 450 | 195 | 275 | 40.9 | 20.800 |
| 401392 | 500 | 212 | 297 | 45.5 | 28.400 |
| 401393 | 560 | 230 | 325 | 50.9 | 39.100 |
| 401394 | 630 | 250 | 355 | 57.3 | 59.700 |
