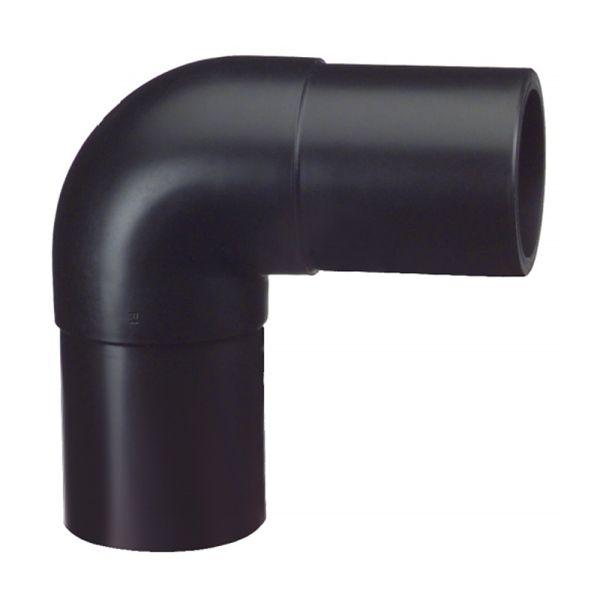

Georg Fischer ecoFIT BF Elbow 90° Long - 16 Bar

Loading...
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar - Gas
16 bar - Water
Temperature Range -50°C to +60°C
Sizes 20 - 315mm
Colour Black - RAL 9005

GF-ecofit-bf-long-elbow-90-diagram

Product Code d (mm) L (mm) z (mm) e (mm) Weight (kg)
400721 20 52 75 3.0 0.027
400722 25 52 80 3.0 0.040
400723 32 54 85 3.0 0.056
400724 40 57 95 3.7 0.089
400725 50 63 105 4.6 0.156
400726 63 65 115 5.8 0.274
400727 75 72 130 6.8 0.414
400728 90 81 150 8.2 0.704
400729 110 86 165 10.0 1.158
400730 125 92 180 11.4 1.609
400731 140 92 194 12.7 2.270
400732 160 102 210 14.6 3.100
400733 180 107 232 16.4 4.328
400734 200 117 253 18.2 5.739
400735 225 122 270 20.5 7.775
400736 250 130 292 22.7 10.506
400737 280 140 320 25.4 15.059
400738 315 150 370 28.6 21.960




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
400721GF ecoFIT BF PE Elbow 90° Long 16 Bar 20mm £9.19 20%
£7.35
400722GF ecoFIT BF PE Elbow 90° Long 16 Bar 25mm £9.57 20%
£7.66
400723GF ecoFIT BF PE Elbow 90° Long 16 Bar 32mm £10.21 20%
£8.17
400724GF ecoFIT BF PE Elbow 90° Long 16 Bar 40mm £13.04 20%
£10.43
400725GF ecoFIT BF PE Elbow 90° Long 16 Bar 50mm £17.58 20%
£14.06
400726GF ecoFIT BF PE Elbow 90° Long 16 Bar 63mm £31.68 20%
£25.34
400727GF ecoFIT BF PE Elbow 90° Long 16 Bar 75mm £41.67 20%
£33.34
400728GF ecoFIT BF PE Elbow 90° Long 16 Bar 90mm £47.96 20%
£38.37
400729GF ecoFIT BF PE Elbow 90° Long 16 Bar 110mm £88.19 20%
£70.55
400730GF ecoFIT BF PE Elbow 90° Long 16 Bar 125mm £112.19 20%
£89.75
400731GF ecoFIT BF PE Elbow 90° Long 16 Bar 140mm £125.25 20%
£100.20
400732GF ecoFIT BF PE Elbow 90° Long 16 Bar 160mm £164.45 20%
£131.56
400733GF ecoFIT BF PE Elbow 90° Long 16 Bar 180mm £184.70 20%
£147.76
400734GF ecoFIT BF PE Elbow 90° Long 16 Bar 200mm £252.94 20%
£202.35
400735GF ecoFIT BF PE Elbow 90° Long 16 Bar 225mm £300.83 20%
£240.66
400736GF ecoFIT BF PE Elbow 90° Long 16 Bar 250mm £501.13 20%
£400.90
400737GF ecoFIT BF PE Elbow 90° Long 16 Bar 280mm £844.02 20%
£675.22
400738GF ecoFIT BF PE Elbow 90° Long 16 Bar 315mm £1,043.44 20%
£834.75
