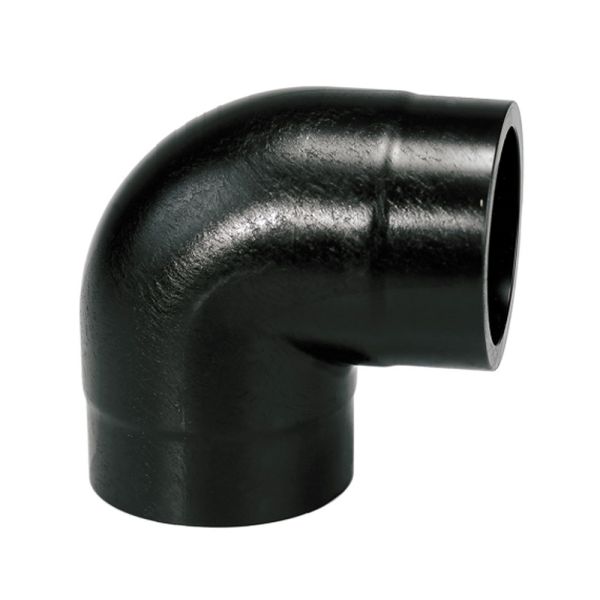

Georg Fischer ecoFIT BF Elbow 90° - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

These fittings are Infrared (IR Plus^®) compatible suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	16 bar
Temperature Range	-50°C to +60°C
Sizes	20 - 63mm
Colour	Black - RAL 9005

GF-ecofit-bf-elbow-90-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
401509	20	38	25	1.9	0.009
401510	25	42	26	2.3	0.013
401511	32	46	27	2.9	0.026
401512	40	51	22	3.7	0.047
401513	50	58	23	4.6	0.086
401514	63	66	21	5.8	0.150

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401509	GF ecoFIT BF PE Elbow 90° 16 Bar 20mm	£4.33	20%	£3.46
401510	GF ecoFIT BF PE Elbow 90° 16 Bar 25mm	£4.45	20%	£3.56
401511	GF ecoFIT BF PE Elbow 90° 16 Bar 32mm	£4.53	20%	£3.62
401512	GF ecoFIT BF PE Elbow 90° 16 Bar 40mm	£6.03	20%	£4.82
401513	GF ecoFIT BF PE Elbow 90° 16 Bar 50mm	£7.56	20%	£6.05
401514	GF ecoFIT BF PE Elbow 90° 16 Bar 63mm	£10.88	20%	£8.70
