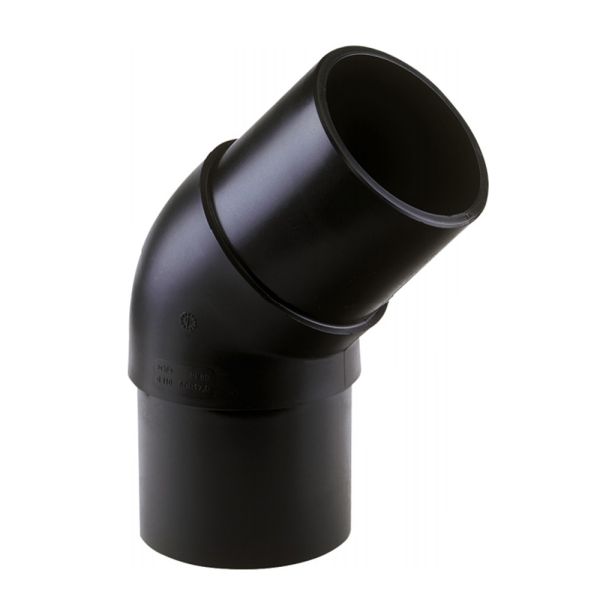

Georg Fischer ecoFIT BF Elbow 45° Long - 16 Bar

Georg Fischer ecoFIT BF Elbow 45° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	20 - 315mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-elbow-45-diagram

Product Code	d (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400750	20	52	70	3.0	0.027
400751	25	52	75	3.0	0.037
400752	32	54	80	3.0	0.050
400753	40	57	85	3.7	0.086
400754	50	63	90	4.6	0.133
400755	63	65	95	5.8	0.227
400756	75	72	105	6.8	0.350
400757	90	81	120	8.2	0.565
400758	110	86	130	10.0	0.921
400759	125	92	140	11.4	1.290
400760	140	120	164	12.7	1.796
400761	160	102	162	14.6	2.454
400762	180	107	170	16.4	3.274
400763	200	116	186	18.2	4.362
400764	225	123	200	20.5	5.981
400765	250	130	220	22.7	8.283
400766	280	140	230	25.4	10.285
400767	315	150	250	28.6	14.124

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400750	GF ecoFIT BF PE Elbow 45° Long 16 Bar 20mm	£9.57	20%	£7.66
400751	GF ecoFIT BF PE Elbow 45° Long 16 Bar 25mm	£10.27	20%	£8.22
400752	GF ecoFIT BF PE Elbow 45° Long 16 Bar 32mm	£12.50	20%	£10.00
400753	GF ecoFIT BF PE Elbow 45° Long 16 Bar 40mm	£15.66	20%	£12.53
400754	GF ecoFIT BF PE Elbow 45° Long 16 Bar 50mm	£17.72	20%	£14.18
400755	GF ecoFIT BF PE Elbow 45° Long 16 Bar 63mm	£31.68	20%	£25.34
400756	GF ecoFIT BF PE Elbow 45° Long 16 Bar 75mm	£42.59	20%	£34.07
400757	GF ecoFIT BF PE Elbow 45° Long 16 Bar 90mm	£47.96	20%	£38.37
400758	GF ecoFIT BF PE Elbow 45° Long 16 Bar 110mm	£77.66	20%	£62.13
400759	GF ecoFIT BF PE Elbow 45° Long 16 Bar 125mm	£112.19	20%	£89.75
400760	GF ecoFIT BF PE Elbow 45° Long 16 Bar 140mm	£125.25	20%	£100.20
400761	GF ecoFIT BF PE Elbow 45° Long 16 Bar 160mm	£164.45	20%	£131.56
400762	GF ecoFIT BF PE Elbow 45° Long 16 Bar 180mm	£186.52	20%	£149.22
400763	GF ecoFIT BF PE Elbow 45° Long 16 Bar 200mm	£253.95	20%	£203.16
400764	GF ecoFIT BF PE Elbow 45° Long 16 Bar 225mm	£302.42	20%	£241.94
400765	GF ecoFIT BF PE Elbow 45° Long 16 Bar 250mm	£524.39	20%	£419.51
400766	GF ecoFIT BF PE Elbow 45° Long 16 Bar 280mm	£791.22	20%	£632.98
400767	GF ecoFIT BF PE Elbow 45° Long 16 Bar 315mm	£960.51	20%	£768.41
