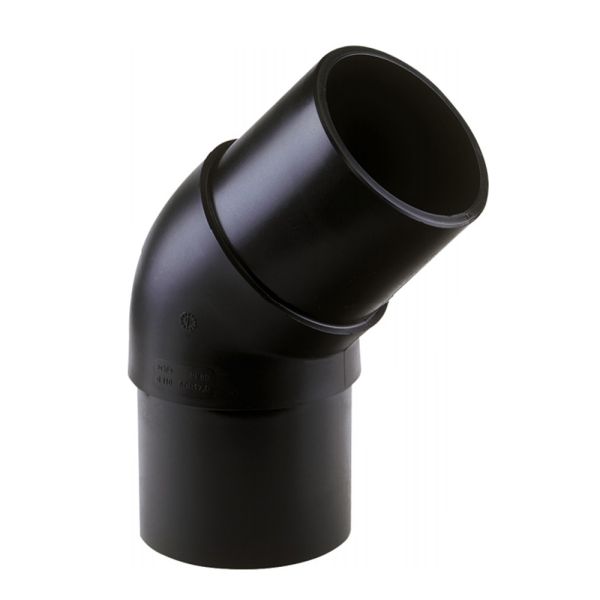

Georg Fischer ecoFIT BF Elbow 45° Long - 10 Bar

Georg Fischer ecoFIT BF Elbow 45° Long - 10 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	5 bar - Gas 10 bar - Water
Temperature Range	-50°C to +60°C
Sizes	90 - 315mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-elbow-45-diagram

Product Code	d (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400768	90	81	120	5.4	0.411
400769	110	86	130	6.6	0.686
400770	125	92	140	7.4	0.948
400771	140	120	164	8.3	1.259
400772	160	102	162	9.5	1.901
400773	180	107	170	10.7	2.386
400774	200	116	186	11.9	3.153
400775	225	123	205	13.4	4.441
400776	250	130	217	14.8	6.012
400777	280	140	230	16.6	7.489
400778	315	150	250	18.7	10.123

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400768	GF ecoFIT BF PE Elbow 45° Long 10 Bar 90mm	£42.69	20%	£34.15
400769	GF ecoFIT BF PE Elbow 45° Long 10 Bar 110mm	£69.65	20%	£55.72
400770	GF ecoFIT BF PE Elbow 45° Long 10 Bar 125mm	£101.32	20%	£81.06
400771	GF ecoFIT BF PE Elbow 45° Long 10 Bar 140mm	£124.18	20%	£99.34
400772	GF ecoFIT BF PE Elbow 45° Long 10 Bar 160mm	£147.93	20%	£118.34
400773	GF ecoFIT BF PE Elbow 45° Long 10 Bar 180mm	£166.41	20%	£133.13
400774	GF ecoFIT BF PE Elbow 45° Long 10 Bar 200mm	£227.41	20%	£181.93
400775	GF ecoFIT BF PE Elbow 45° Long 10 Bar 225mm	£272.16	20%	£217.73
400776	GF ecoFIT BF PE Elbow 45° Long 10 Bar 250mm	£451.18	20%	£360.94
400777	GF ecoFIT BF PE Elbow 45° Long 10 Bar 280mm	£680.82	20%	£544.66
400778	GF ecoFIT BF PE Elbow 45° Long 10 Bar 315mm	£847.25	20%	£677.80
