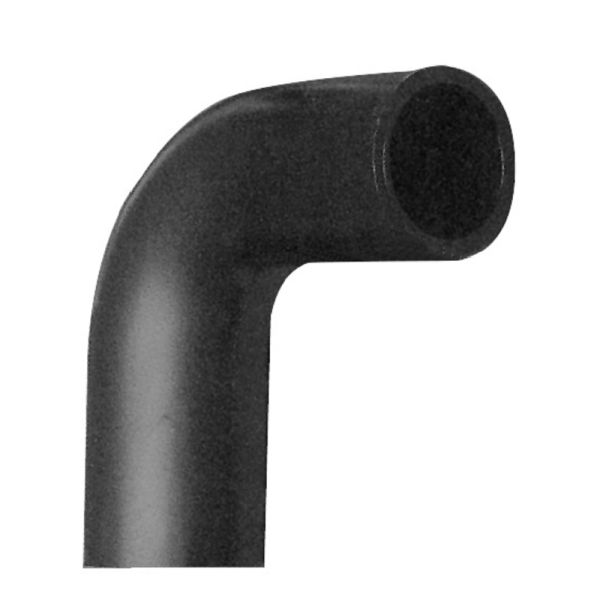

Georg Fischer ecoFIT BF Bend 90° Long - 16 Bar

Georg Fischer ecoFIT BF Bend 90° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Bends 355mm through to 800mm are made out of seamless pipe.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	32 - 800mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-90-diagram

Product Code	d (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400833	32	46	78	3.0	0.042
400834	40	49	91	3.7	0.090
400835	50	55	107	4.6	0.160
400836	63	63	130	5.8	0.280
400837	75	70	152	6.8	0.464
400838	90	79	168	8.2	0.530
400839	110	82	193	10.0	1.282
400840	125	87	216	11.4	1.290
400841	140	92	232	12.7	2.230
400842	160	98	258	14.6	3.424
400843	180	105	290	16.4	5.000
400844	200	112	317	18.2	6.925
400845	225	120	350	20.5	9.770
400846	250	130	375	22.7	9.230
400847	280	150	430	25.4	15.487
400848	315	150	470	28.6	23.950
400849	355	250	900	32.3	53.300
400850	400	250	980	36.4	71.900
400851	450	250	1070	40.9	97.300
400852	500	280	1200	45.5	134.000
400853	560	280	1290	50.9	179.300
400854	630	280	1400	57.3	243.200
400855	710	350	1900	64.5	469.943
400856	800	350	2000	72.6	577.131

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400833	GF ecoFIT BF PE Bend 90° Long 16 Bar 32mm	£34.45	20%	£27.56
400834	GF ecoFIT BF PE Bend 90° Long 16 Bar 40mm	£37.72	20%	£30.18
400835	GF ecoFIT BF PE Bend 90° Long 16 Bar 50mm	£52.13	20%	£41.70
400836	GF ecoFIT BF PE Bend 90° Long 16 Bar 63mm	£72.88	20%	£58.30
400837	GF ecoFIT BF PE Bend 90° Long 16 Bar 75mm	£81.01	20%	£64.81
400838	GF ecoFIT BF PE Bend 90° Long 16 Bar 90mm	£90.80	20%	£72.64
400839	GF ecoFIT BF PE Bend 90° Long 16 Bar 110mm	£117.68	20%	£94.14
400840	GF ecoFIT BF PE Bend 90° Long 16 Bar 125mm	£134.95	20%	£107.96
400841	GF ecoFIT BF PE Bend 90° Long 16 Bar 140mm	£155.18	20%	£124.14
400842	GF ecoFIT BF PE Bend 90° Long 16 Bar 160mm	£185.60	20%	£148.48
400843	GF ecoFIT BF PE Bend 90° Long 16 Bar 180mm	£306.58	20%	£245.26
400844	GF ecoFIT BF PE Bend 90° Long 16 Bar 200mm	£372.02	20%	£297.62
400845	GF ecoFIT BF PE Bend 90° Long 16 Bar 225mm	£441.55	20%	£353.24
400846	GF ecoFIT BF PE Bend 90° Long 16 Bar 250mm	£534.38	20%	£427.50
400847	GF ecoFIT BF PE Bend 90° Long 16 Bar 280mm	£650.15	20%	£520.12
400848	GF ecoFIT BF PE Bend 90° Long 16 Bar 315mm	£806.91	20%	£645.53
400849	GF ecoFIT BF PE Bend 90° Long 16 Bar 355mm	£2,164.84	20%	£1,731.87
400850	GF ecoFIT BF PE Bend 90° Long 16 Bar 400mm	£2,482.13	20%	£1,985.70
400851	GF ecoFIT BF PE Bend 90° Long 16 Bar 450mm	£3,507.52	20%	£2,806.02
400852	GF ecoFIT BF PE Bend 90° Long 16 Bar 500mm	£5,275.33	20%	£4,220.26
400853	GF ecoFIT BF PE Bend 90° Long 16 Bar 560mm	£6,603.65	20%	£5,282.92
400854	GF ecoFIT BF PE Bend 90° Long 16 Bar 630mm	£8,486.54	20%	£6,789.23
400855	GF ecoFIT BF PE Bend 90° Long 16 Bar 710mm	£15,256.89	20%	£12,205.51
400856	GF ecoFIT BF PE Bend 90° Long 16 Bar 800mm	£25,289.92	20%	£20,231.94
