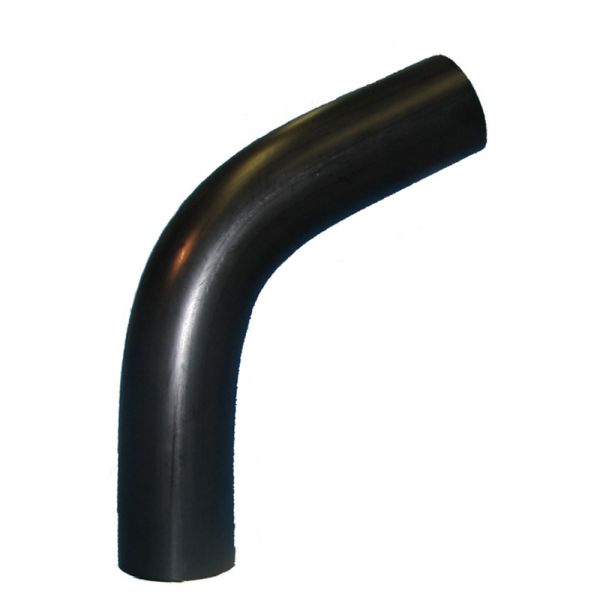

Georg Fischer ecoFIT BF Bend 60° Long - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
| Pressure Rating | 10 bar - Gas 16 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 32 - 630mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | R (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 400876 | 32 | 48 | 80 | 128 | 2.9 | 0.070 |
| 400877 | 40 | 60 | 80 | 135 | 3.7 | 0.120 |
| 400878 | 50 | 75 | 100 | 158 | 4.6 | 0.240 |
| 400879 | 63 | 95 | 100 | 173 | 5.8 | 0.420 |
| 400880 | 75 | 113 | 100 | 182 | 6.8 | 0.600 |
| 400881 | 90 | 135 | 100 | 193 | 8.2 | 0.900 |
| 400882 | 110 | 165 | 150 | 270 | 10.0 | 1.780 |
| 400883 | 125 | 188 | 150 | 283 | 11.4 | 2.500 |
| 400884 | 140 | 210 | 150 | 296 | 12.7 | 2.700 |
| 400885 | 160 | 240 | 150 | 313 | 14.6 | 4.574 |
| 400886 | 180 | 270 | 150 | 330 | 16.4 | 4.900 |
| 400887 | 200 | 300 | 150 | 348 | 18.2 | 6.400 |
| 400888 | 225 | 338 | 150 | 370 | 20.5 | 8.600 |
| 400889 | 250 | 375 | 250 | 500 | 22.7 | 14.500 |
| 400890 | 280 | 420 | 250 | 530 | 25.4 | 19.100 |
| 400891 | 315 | 473 | 250 | 612 | 28.6 | 25.600 |
| 400892 | 355 | 533 | 300 | 690 | 32.3 | 41.700 |
| 400893 | 400 | 600 | 300 | 730 | 36.4 | 55.800 |
| 400894 | 450 | 675 | 300 | 780 | 40.9 | 76.000 |
| 400895 | 500 | 750 | 350 | 880 | 45.5 | 104.600 |
| 400896 | 560 | 840 | 350 | 930 | 50.9 | 139.500 |
| 400897 | 630 | 945 | 350 | 1000 | 57.3 | 188.500 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
