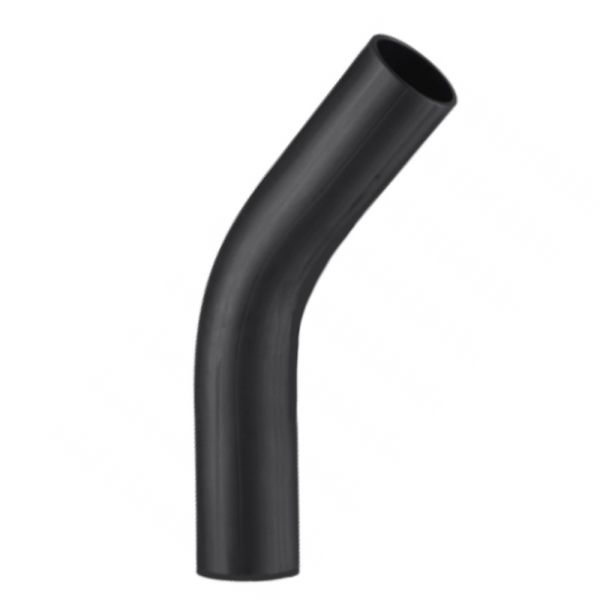

Georg Fischer ecoFIT BF Bend 30° Long - 10 Bar

Loading...
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 5 bar - Gas
10 bar - Water
Temperature Range -50°C to +60°C
Sizes 90 - 630mm
Colour Black - RAL 9005

GF-ecofit-bf-long-bend-30-diagram

Product Code d (mm) R (mm) L (mm) z (mm) e (mm) Weight (kg)
400937 90 135 100 160 5.4 0.500
400938 110 165 150 219 6.6 1.060
400939 125 188 150 225 7.4 1.100
400940 140 210 150 231 8.3 1.720
400941 160 240 150 239 9.5 2.565
400942 180 270 150 247 10.7 3.389
400943 200 300 150 255 11.9 4.213
400944 225 338 150 266 13.4 7.540
400945 250 375 250 385 14.8 11.600
400946 280 420 250 400 16.6 12.800
400947 315 473 250 460 18.7 25.000
400948 355 533 300 540 21.1 22.700
400949 400 600 300 560 23.7 29.800
400950 450 675 300 580 26.7 39.100
400951 500 750 350 650 29.7 54.000
400952 560 840 350 680 33.2 70.300
400953 630 945 350 730 37.4 95.800

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.




Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
400937GF ecoFIT BF PE Bend 30° Long 10 Bar 90mm £149.17 20%
£119.34
400938GF ecoFIT BF PE Bend 30° Long 10 Bar 110mm £186.44 20%
£149.15
400939GF ecoFIT BF PE Bend 30° Long 10 Bar 125mm £210.90 20%
£168.72
400940GF ecoFIT BF PE Bend 30° Long 10 Bar 140mm £240.71 20%
£192.57
400941GF ecoFIT BF PE Bend 30° Long 10 Bar 160mm £265.53 20%
£212.42
400942GF ecoFIT BF PE Bend 30° Long 10 Bar 180mm £424.84 20%
£339.87
400943GF ecoFIT BF PE Bend 30° Long 10 Bar 200mm £513.21 20%
£410.57
400944GF ecoFIT BF PE Bend 30° Long 10 Bar 225mm £608.51 20%
£486.81
400945GF ecoFIT BF PE Bend 30° Long 10 Bar 250mm £735.53 20%
£588.42
400946GF ecoFIT BF PE Bend 30° Long 10 Bar 280mm £813.84 20%
£651.07
400947GF ecoFIT BF PE Bend 30° Long 10 Bar 315mm £1,050.33 20%
£840.26
400948GF ecoFIT BF PE Bend 30° Long 10 Bar 355mm £1,659.01 20%
£1,327.21
400949GF ecoFIT BF PE Bend 30° Long 10 Bar 400mm £2,302.73 20%
£1,842.18
400950GF ecoFIT BF PE Bend 30° Long 10 Bar 450mm £2,767.98 20%
£2,214.38
400951GF ecoFIT BF PE Bend 30° Long 10 Bar 500mm £3,795.29 20%
£3,036.23
400952GF ecoFIT BF PE Bend 30° Long 10 Bar 560mm £4,708.94 20%
£3,767.15
400953GF ecoFIT BF PE Bend 30° Long 10 Bar 630mm £5,874.00 20%
£4,699.20
