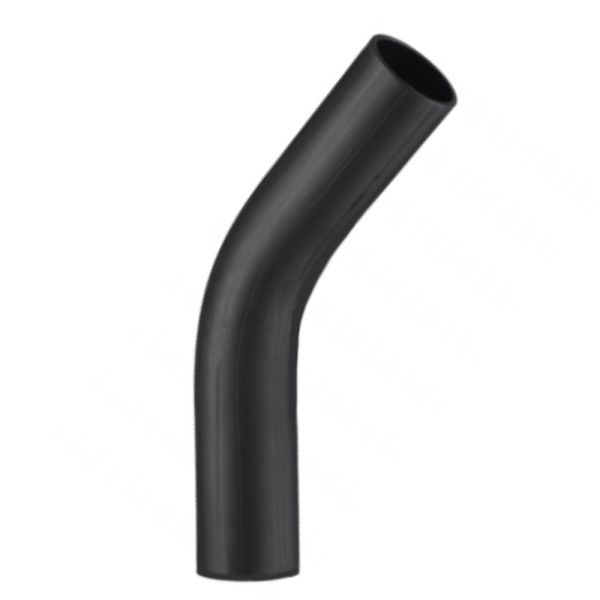

Georg Fischer ecoFIT BF Bend 22° Long - 16 Bar

Georg Fischer ecoFIT BF Bend 22° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	32 - 630mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-20-diagram

Product Code	d (mm)	R (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400954	32	48	80	113	2.9	0.077
400955	40	60	80	116	3.7	0.120
400956	50	75	100	140	4.6	0.200
400957	63	95	100	150	5.8	0.400
400958	75	113	100	155	6.8	0.520
400959	90	135	100	160	8.2	0.760
400960	110	165	150	219	10.0	1.689
400961	125	188	150	225	11.4	2.096
400962	140	210	150	231	12.7	2.200
400963	160	240	150	239	14.6	3.650
400964	180	270	150	247	16.4	4.782
400965	200	300	150	255	18.2	5.777
400966	225	338	150	266	20.5	6.300
400967	250	375	250	385	22.7	13.100
400968	280	420	250	400	25.4	16.300
400969	315	473	250	460	28.6	21.850
400970	355	533	300	540	32.3	34.900
400971	400	600	300	560	36.4	45.900
400972	450	675	300	580	40.9	60.200
400973	500	750	350	630	45.5	83.300
400974	560	840	350	680	50.9	108.600
400975	630	945	350	730	57.3	148.300

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400954	GF ecoFIT BF PE Bend 22° Long 16 Bar 32mm	£71.13	20%	£56.90
400955	GF ecoFIT BF PE Bend 22° Long 16 Bar 40mm	£77.64	20%	£62.11
400956	GF ecoFIT BF PE Bend 22° Long 16 Bar 50mm	£107.05	20%	£85.64
400957	GF ecoFIT BF PE Bend 22° Long 16 Bar 63mm	£149.76	20%	£119.81
400958	GF ecoFIT BF PE Bend 22° Long 16 Bar 75mm	£164.11	20%	£131.29
400959	GF ecoFIT BF PE Bend 22° Long 16 Bar 90mm	£181.73	20%	£145.38
400960	GF ecoFIT BF PE Bend 22° Long 16 Bar 110mm	£235.12	20%	£188.10
400961	GF ecoFIT BF PE Bend 22° Long 16 Bar 125mm	£262.02	20%	£209.62
400962	GF ecoFIT BF PE Bend 22° Long 16 Bar 140mm	£294.79	20%	£235.83
400963	GF ecoFIT BF PE Bend 22° Long 16 Bar 160mm	£346.03	20%	£276.82
400964	GF ecoFIT BF PE Bend 22° Long 16 Bar 180mm	£578.91	20%	£463.13
400965	GF ecoFIT BF PE Bend 22° Long 16 Bar 200mm	£701.30	20%	£561.04
400966	GF ecoFIT BF PE Bend 22° Long 16 Bar 225mm	£836.98	20%	£669.58
400967	GF ecoFIT BF PE Bend 22° Long 16 Bar 250mm	£975.89	20%	£780.71
400968	GF ecoFIT BF PE Bend 22° Long 16 Bar 280mm	£1,159.97	20%	£927.98
400969	GF ecoFIT BF PE Bend 22° Long 16 Bar 315mm	£1,407.01	20%	£1,125.61
400970	GF ecoFIT BF PE Bend 22° Long 16 Bar 355mm	£2,573.93	20%	£2,059.14
400971	GF ecoFIT BF PE Bend 22° Long 16 Bar 400mm	£2,830.88	20%	£2,264.70
400972	GF ecoFIT BF PE Bend 22° Long 16 Bar 450mm	£3,478.78	20%	£2,783.02
400973	GF ecoFIT BF PE Bend 22° Long 16 Bar 500mm	£4,872.52	20%	£3,898.02
400974	GF ecoFIT BF PE Bend 22° Long 16 Bar 560mm	£6,100.15	20%	£4,880.12
400975	GF ecoFIT BF PE Bend 22° Long 16 Bar 630mm	£7,839.38	20%	£6,271.50
