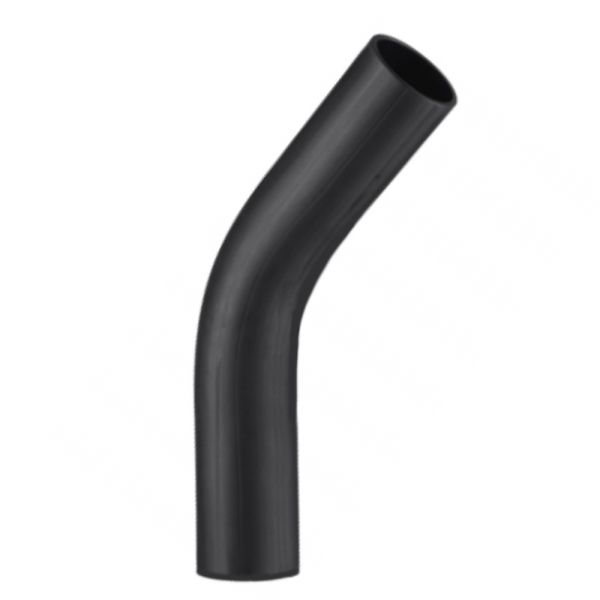

Georg Fischer ecoFIT BF Bend 11° Long - 16 Bar

Georg Fischer ecoFIT BF Bend 11° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	32 - 630mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-11-diagram

Product Code	d (mm)	R (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400993	32	48	80	113	2.9	0.077
400994	40	60	80	116	3.7	0.120
400995	50	75	100	140	4.6	0.200
400996	63	95	100	150	5.8	0.400
400997	75	113	100	155	6.8	0.520
400998	90	135	100	160	8.2	0.760
400999	110	165	150	219	10.0	1.689
401000	125	188	150	225	11.4	2.096
401001	140	210	150	231	12.7	2.200
401002	160	240	150	239	14.6	3.650
401003	180	270	150	247	16.4	4.782
401004	200	300	150	255	18.2	5.777
401005	225	338	150	266	20.5	6.300
401006	250	375	250	385	22.7	13.100
401007	280	420	250	400	25.4	16.300
401008	315	473	250	460	28.6	21.850
401009	355	533	300	540	32.3	34.900
401010	400	600	300	560	36.4	45.900
401011	450	675	300	580	40.9	60.200
401012	500	750	350	630	45.5	83.300
401013	560	840	350	680	50.9	108.600
401014	630	945	350	730	57.3	148.300

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400993	GF ecoFIT BF PE Bend 11° Long 16 Bar 32mm	£71.13	20%	£56.90
400994	GF ecoFIT BF PE Bend 11° Long 16 Bar 40mm	£77.64	20%	£62.11
400995	GF ecoFIT BF PE Bend 11° Long 16 Bar 50mm	£107.05	20%	£85.64
400996	GF ecoFIT BF PE Bend 11° Long 16 Bar 63mm	£149.76	20%	£119.81
400997	GF ecoFIT BF PE Bend 11° Long 16 Bar 75mm	£164.11	20%	£131.29
400998	GF ecoFIT BF PE Bend 11° Long 16 Bar 90mm	£181.73	20%	£145.38
400999	GF ecoFIT BF PE Bend 11° Long 16 Bar 110mm	£235.12	20%	£188.10
401000	GF ecoFIT BF PE Bend 11° Long 16 Bar 125mm	£262.02	20%	£209.62
401001	GF ecoFIT BF PE Bend 11° Long 16 Bar 140mm	£294.79	20%	£235.83
401002	GF ecoFIT BF PE Bend 11° Long 16 Bar 160mm	£346.03	20%	£276.82
401003	GF ecoFIT BF PE Bend 11° Long 16 Bar 180mm	£578.91	20%	£463.13
401004	GF ecoFIT BF PE Bend 11° Long 16 Bar 200mm	£701.30	20%	£561.04
401005	GF ecoFIT BF PE Bend 11° Long 16 Bar 225mm	£836.98	20%	£669.58
401006	GF ecoFIT BF PE Bend 11° Long 16 Bar 250mm	£975.89	20%	£780.71
401007	GF ecoFIT BF PE Bend 11° Long 16 Bar 280mm	£1,159.97	20%	£927.98
401008	GF ecoFIT BF PE Bend 11° Long 16 Bar 315mm	£1,407.01	20%	£1,125.61
401009	GF ecoFIT BF PE Bend 11° Long 16 Bar 355mm	£2,573.93	20%	£2,059.14
401010	GF ecoFIT BF PE Bend 11° Long 16 Bar 400mm	£2,830.88	20%	£2,264.70
401011	GF ecoFIT BF PE Bend 11° Long 16 Bar 450mm	£3,478.78	20%	£2,783.02
401012	GF ecoFIT BF PE Bend 11° Long 16 Bar 500mm	£4,872.52	20%	£3,898.02
401013	GF ecoFIT BF PE Bend 11° Long 16 Bar 560mm	£6,100.15	20%	£4,880.12
401014	GF ecoFIT BF PE Bend 11° Long 16 Bar 630mm	£7,839.38	20%	£6,271.50
