Georg Fischer ecoFIT BF Adaptor Thread M x F - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene PE80 for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

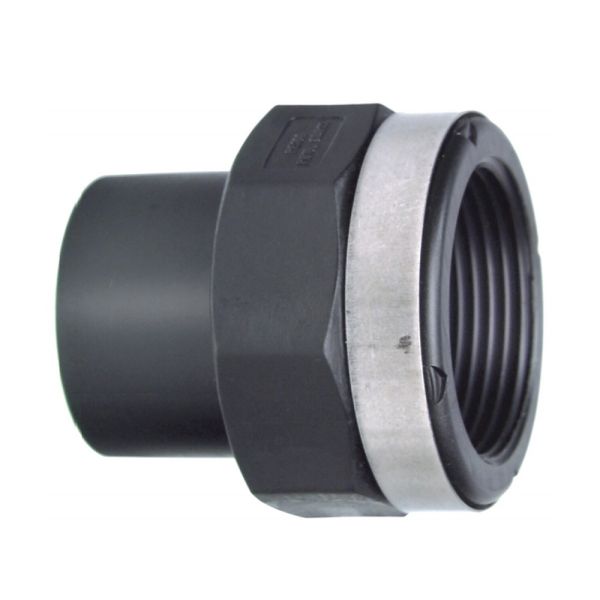

These socket adaptors have a butt fusion spigot and a female BSP parallel threaded socket with a stainless steel reinforcing ring for connection to plastic or metal threaded fittings.
| Pressure Rating | 16 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 20 - 63mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | Rp (inch) | L (mm) | L1 (mm) | s (mm) | e (mm) | Weight (kg) |
| 401869 | 20 | 1/2 | 49 | 23 | 32 | 1.9 | 0.018 |
| 401870 | 25 | 3/4 | 51 | 23 | 36 | 2.3 | 0.022 |
| 401871 | 32 | 1 | 55 | 23 | 46 | 3.0 | 0.038 |
| 401872 | 40 | 1 1/4 | 57 | 23 | 55 | 3.7 | 0.068 |
| 401873 | 50 | 1 1/2 | 60 | 23 | 64 | 4.6 | 0.083 |
| 401874 | 63 | 2 | 62 | 23 | 80 | 5.8 | 0.134 |
Â
