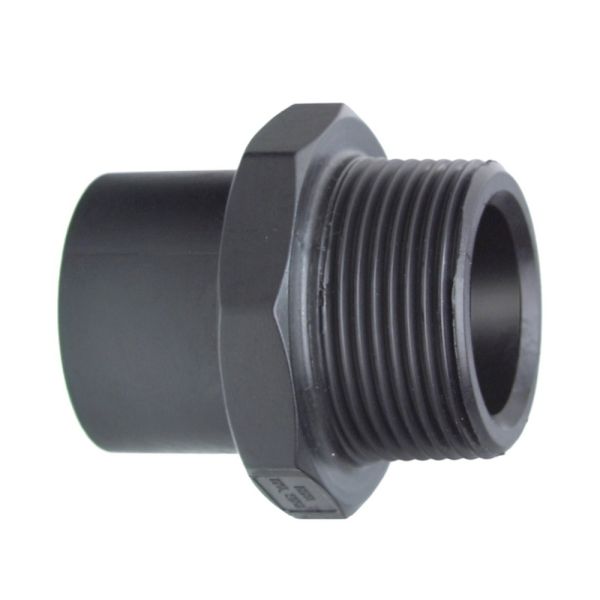

Georg Fischer ecoFIT BF Adaptor Thread M x M - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene PE80 for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
These adaptors have a tapered male threaded end and butt fusion spigot end and should be installed with low mechanical stress.
| Pressure Rating | 16 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 20 - 63mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | R (inch) | L (mm) | L1 (mm) | s (mm) | e (mm) | Weight (kg) |
| 401875 | 20 | 1/2 | 51 | 23 | 32 | 1.9 | 0.013 |
| 401876 | 25 | 3/4 | 52 | 23 | 36 | 2.3 | 0.026 |
| 401877 | 32 | 1 | 55 | 23 | 46 | 3.0 | 0.028 |
| 401878 | 40 | 1 1/4 | 58 | 23 | 55 | 3.7 | 0.043 |
| 401879 | 50 | 1 1/2 | 60 | 23 | 65 | 4.6 | 0.063 |
| 401880 | 63 | 2 | 67 | 26 | 80 | 5.8 | 0.104 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
