Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Rings: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit
Leak Detection: Leaky if unpressed (up to 54 mm
Installation: Suitable for both surface-mounted and concealed systems
Description

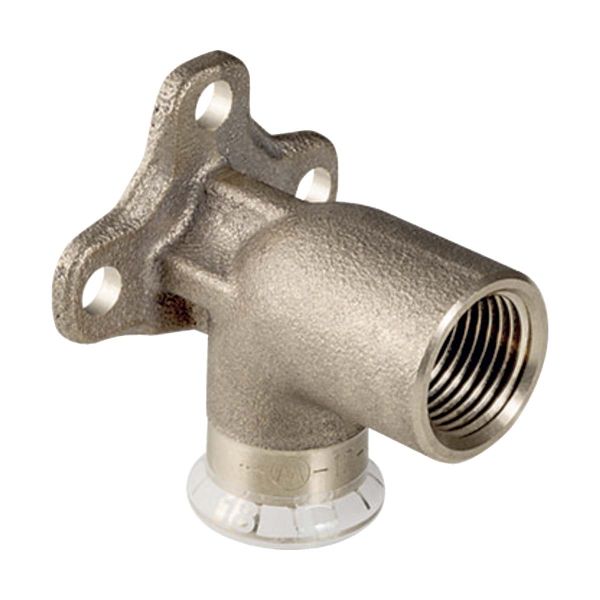

The Geberit Mapress Copper Wall Plate Elbow is designed for securely connecting copper pipes to wall-mounted fixtures, such as taps or valves. This elbow fitting provides a reliable 90-degree connection with a wall-mounted fastening plate that has three anchoring points, ensuring a stable and durable installation. It is ideal for potable water installations, as well as open and closed heating and cooling circuits. The press-fit technology allows for a quick, safe, and fire-free installation without the need for welding or soldering.
Key Features
Durable Gunmetal Construction: Made from high-quality gunmetal (CuSn5Zn5Pb2-C), the wall plate elbow offers excellent resistance to corrosion, ensuring long-lasting durability in both potable water and heating/cooling systems.
Press-Fit Technology: The press-fit connection ensures fast and reliable installation without the need for welding or soldering, reducing the risk of fire hazards and making it suitable for both residential and commercial installations.
Leak Detection: The fitting is designed to be leaky if unpressed, allowing installers to easily identify any unpressed connections during installation, ensuring a secure and reliable system.
Secure Fastening: The elbow is equipped with three fastening points on the wall plate, providing a stable and secure installation, especially in applications requiring solid wall-mounted connections.
Reliable Seal: The elbow features a CIIR black seal ring, ensuring a leak-proof connection that can withstand the demands of various system pressures and temperatures.
Protected Installation: The pressing socket is equipped with a transparent protection plug to keep the seal rings free from dirt and debris during installation, ensuring a clean and hygienic connection.
Easy Identification: The fitting includes pressing indicators for easy identification and confirmation of a secure connection, reducing the risk of installation errors or confusion with third-party products.
Versatile Application: Suitable for both surface-mounted and concealed installations, the Geberit Mapress Copper Wall Plate Elbow can be used in a wide range of plumbing systems, including potable water and heating applications.
SKU
Art. no.
DN
d, ø (mm)
Rp (Inches)
arc (Degrees)
L (cm)
L1 (cm)
l (cm)
l1 (cm)
Z (cm)
486984
63459
12 / 15
15
1/2
90
3.8
3.6
1.8
1.8
1.8
486986
63460
15
18
1/2
90
3.8
3.6
1.8
1.8
1.8
486985
63453
12 / 15
15
1/2
90
3.4
5.2
1.8
3.4
1.4
486987
63455
15
18
1/2
90
3.4
5.2
1.8
3.4
1.4
486988
63457
20
22
3/4
90
3.7
5.2
2.2
3
1.6
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
