Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Rings: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit
Leak Detection: Leaky if unpressed (up to 54 mm
Installation: Suitable for both surface-mounted and concealed systems
Description

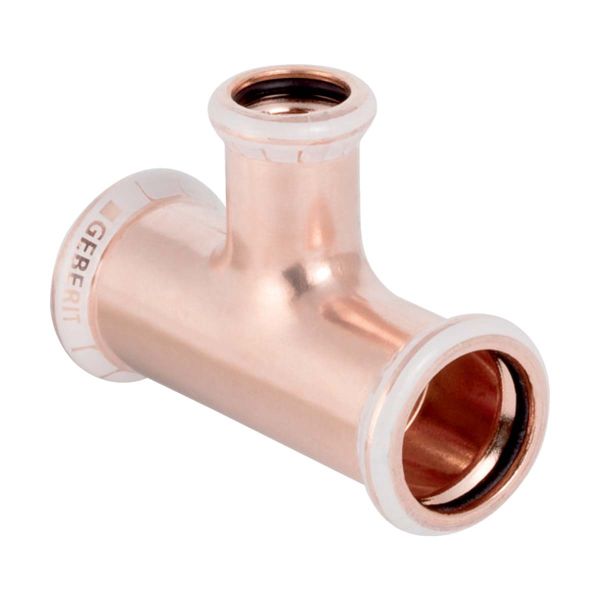

The Geberit Mapress Copper Reducing Tee is designed to create a secure and efficient connection between copper pipes of varying diameters. This fitting is ideal for potable water installations, as well as heating and cooling circuits in both residential and industrial settings. Its reducing design allows for the joining of different pipe sizes, while the press-fit technology ensures a reliable and quick installation without the need for hot works.
Key Features
High-Quality Copper Material: Made from Cu-DHP copper CW024A (EN 1412), the tee fitting ensures durability, excellent conductivity, and corrosion resistance.
Safe and Efficient Installation: The press-fit technology eliminates the need for welding or soldering, reducing fire hazards and lowering labour costs.
Leak Detection: Fittings are leaky if unpressed up to diameters of 54 mm, ensuring that any missed connections are easily detected before finalising the installation.
Reliable Sealing: Fitted with CIIR black seal rings for sizes up to 54 mm, and EPDM black seal rings for sizes over 54 mm, offering excellent sealing performance.
Universal Application: Suitable for both surface-mounted and concealed installations, the tee can be used in a variety of plumbing and heating systems.
Colour Indicators: Features transparent protection plugs and colour-coded indicator rings, making it easy to identify product materials and application ranges, preventing mix-ups with third-party products.
SKU
Article Number
DN
d
d1
d2
arc
L
L1
I
I2
Z
Z1
Z2
486892
61104
12 / 20
15 mm
22 mm
15 mm
90 °
7.4 cm
3.4 cm
3.7 cm
3.7 cm
1.7 cm
1.3 cm
1.7 cm
486910
61212
32 / 12
35 mm
15 mm
35 mm
90 °
10 cm
5.1 cm
5 cm
5 cm
2.4 cm
3.1 cm
2.4 cm
486909
61213
32 / 15
35 mm
18 mm
35 mm
90 °
10 cm
5 cm
5 cm
5 cm
2.4 cm
3 cm
2.4 cm
486911
61214
32 / 20
35 mm
22 mm
35 mm
90 °
10 cm
5.2 cm
5 cm
5 cm
2.4 cm
3.1 cm
2.4 cm
486912
61215
32 / 25
35 mm
28 mm
35 mm
90 °
10 cm
5.5 cm
5 cm
5 cm
2.4 cm
3.2 cm
2.4 cm
486913
61217
40 / 15
42 mm
18 mm
42 mm
90 °
11.4 cm
5.4 cm
5.7 cm
5.7 cm
2.7 cm
3.4 cm
2.7 cm
486915
61218
40 / 20
42 mm
22 mm
42 mm
90 °
11.4 cm
5.5 cm
5.7 cm
5.7 cm
2.7 cm
3.4 cm
2.7 cm
486916
61219
40 / 25
42 mm
28 mm
42 mm
90 °
11.4 cm
5.8 cm
5.7 cm
5.7 cm
2.7 cm
3.5 cm
2.7 cm
486917
61219
40 / 32
42 mm
35 mm
42 mm
90 °
11.4 cm
6.2 cm
5.7 cm
5.7 cm
2.7 cm
3.6 cm
2.7 cm
486920
61225
50 / 32
54 mm
35 mm
54 mm
90 °
13.8 cm
6.8 cm
6.9 cm
6.9 cm
3.4 cm
4.2 cm
3.4 cm
486921
61226
50 / 40
54 mm
42 mm
54 mm
90 °
13.8 cm
7.2 cm
6.9 cm
6.9 cm
3.4 cm
4.2 cm
3.4 cm
486918
61227
50 / 20
54 mm
22 mm
54 mm
90 °
13.8 cm
6.1 cm
6.9 cm
6.9 cm
3.4 cm
4 cm
3.4 cm
486919
61228
50 / 25
54 mm
28 mm
54 mm
90 °
13.8 cm
6.4 cm
6.9 cm
6.9 cm
3.4 cm
4.1 cm
3.4 cm
486914
61229
40 / 12
42 mm
15 mm
42 mm
90 °
11.4 cm
5.4 cm
5.7 cm
5.7 cm
2.7 cm
3.4 cm
2.7 cm
486893
61235
15 / 12
18 mm
15 mm
15 mm
90 °
7.4 cm
3.5 cm
3.4 cm
4 cm
1.4 cm
1.5 cm
2 cm
486897
61236
15 / 12
18 mm
18 mm
15 mm
90 °
7.4 cm
3.4 cm
3.4 cm
4 cm
1.4 cm
1.4 cm
2 cm
486899
61240
20 / 12
22 mm
15 mm
15 mm
90 °
8 cm
3.8 cm
3.7 cm
4.3 cm
1.6 cm
1.8 cm
2.3 cm
486901
61242
20 / 12
22 mm
22 mm
15 mm
90 °
7.4 cm
3.7 cm
3.7 cm
4.5 cm
1.6 cm
1.6 cm
2.5 cm
486895
61254
15 / 12
18 mm
15 mm
18 mm
90 °
6.8 cm
3.5 cm
3.4 cm
3.4 cm
1.4 cm
1.5 cm
1.4 cm
486904
61256
20 / 12
22 mm
15 mm
22 mm
90 °
7.4 cm
3.8 cm
3.7 cm
3.7 cm
1.6 cm
1.8 cm
1.6 cm
486903
61257
20 / 15
22 mm
18 mm
22 mm
90 °
7.4 cm
3.8 cm
3.7 cm
3.7 cm
1.6 cm
1.8 cm
1.6 cm
486907
61259
25 / 12
28 mm
15 mm
28 mm
90 °
8.4 cm
4.1 cm
4.2 cm
4.2 cm
1.9 cm
2.1 cm
1.9 cm
486905
61260
25 / 15
28 mm
18 mm
28 mm
90 °
8.4 cm
4.1 cm
4.2 cm
4.2 cm
1.9 cm
2.1 cm
1.9 cm
486908
61261
25 / 20
28 mm
22 mm
28 mm
90 °
8.4 cm
4.1 cm
4.2 cm
4.2 cm
1.9 cm
2 cm
1.9 cm
486922
61280
65 / 20
66.7 mm
22 mm
66.7 mm
90 °
22 cm
6.5 cm
11 cm
11 cm
6 cm
4.4 cm
6 cm
486923
61281
65 / 25
66.7 mm
28 mm
66.7 mm
90 °
22 cm
6.8 cm
11 cm
11 cm
6 cm
4.5 cm
6 cm
486924
61282
65 / 50
66.7 mm
54 mm
66.7 mm
90 °
22 cm
8.2 cm
11 cm
11 cm
6 cm
4.7 cm
6 cm
486881
61283
65 / 20
76.1 mm
22 mm
76.1 mm
90 °
23 cm
7.2 cm
11.5 cm
11.5 cm
6.2 cm
5.1 cm
6.2 cm
486882
61284
65 / 32
76.1 mm
35 mm
76.1 mm
90 °
23 cm
7.9 cm
11.5 cm
11.5 cm
6.2 cm
5.3 cm
6.2 cm
486883
61285
65 / 40
76.1 mm
42 mm
76.1 mm
90 °
23 cm
8.3 cm
11.5 cm
11.5 cm
6.2 cm
5.3 cm
6.2 cm
486884
61286
65 / 50
76.1 mm
54 mm
76.1 mm
90 °
23 cm
8.9 cm
11.5 cm
11.5 cm
6.2 cm
5.4 cm
6.2 cm
486885
61287
65
76.1 mm
66.7 mm
76.1 mm
90 °
23 cm
11 cm
11.5 cm
11.5 cm
6.2 cm
6 cm
6.2 cm
486925
61288
80 / 20
88.9 mm
22 mm
88.9 mm
90 °
26 cm
7.8 cm
13 cm
13 cm
7 cm
5.7 cm
7 cm
486926
61289
80 / 40
88.9 mm
42 mm
88.9 mm
90 °
26 cm
8.9 cm
13 cm
13 cm
7 cm
5.9 cm
7 cm
486927
61290
80 / 50
88.9 mm
54 mm
88.9 mm
90 °
26 cm
9.5 cm
13 cm
13 cm
7 cm
6 cm
7 cm
486928
61292
80 / 65
88.9 mm
76.1 mm
88.9 mm
90 °
26 cm
11.6 cm
13 cm
13 cm
7 cm
6.3 cm
7 cm
486886
61293
100 / 20
108 mm
22 mm
108 mm
90 °
31 cm
8.8 cm
15.5 cm
15.5 cm
8 cm
6.7 cm
8 cm
486887
61294
100 / 50
108 mm
54 mm
108 mm
90 °
31 cm
10.5 cm
15.5 cm
15.5 cm
8 cm
7 cm
8 cm
486888
61295
100 / 65
108 mm
66.7 mm
108 mm
90 °
31 cm
12.6 cm
15.5 cm
15.5 cm
8 cm
7.6 cm
8 cm
486889
61296
100 / 65
108 mm
76.1 mm
108 mm
90 °
31 cm
12.6 cm
15.5 cm
15.5 cm
8 cm
7.3 cm
8 cm
486890
61297
100 / 80
108 mm
88.9 mm
108 mm
90 °
31 cm
13.7 cm
15.5 cm
15.5 cm
8 cm
7.7 cm
8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
