Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Material: Gunmetal (CuSn5Zn5Pb2-C)
Seal Ring: CIIR black seal ring
Connection Technology: Press-fit with leak detection and pressing indicator
Installation: Suitable for surface-mounted and concealed systems
Description

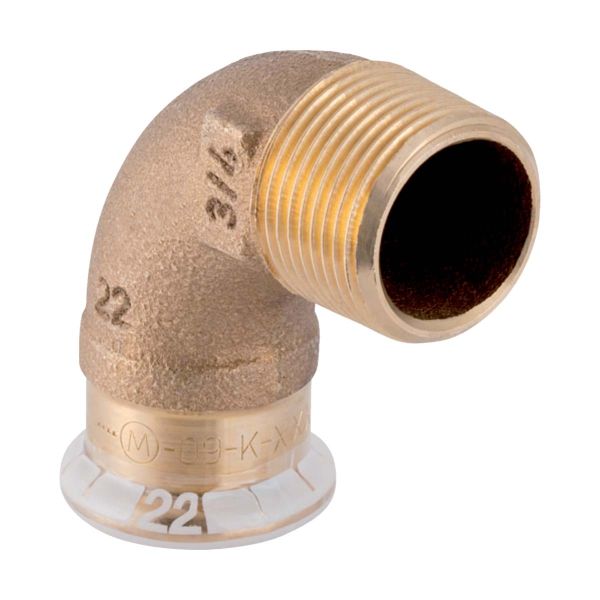

The Geberit Mapress Copper Male Threaded Elbow 90° is designed to provide a secure 90-degree directional change in copper piping systems while connecting copper pipes to a component with a male thread, such as valves, fittings, or other threaded parts. This elbow is ideal for use in potable water installations as well as open and closed heating and cooling circuits. The press-fit technology ensures fast and safe installation without the need for welding or soldering, making it suitable for both new installations and renovations.
Key Features
Durable Gunmetal Construction: Made from high-quality gunmetal (CuSn5Zn5Pb2-C), this elbow offers excellent resistance to corrosion, ensuring long-lasting durability and performance in both potable water and heating/cooling applications.
Press-Fit Technology: The press-fit connection eliminates the need for welding or soldering, reducing installation time and lowering the risk of fire hazards. This makes it especially useful for installations in residential or confined spaces.
Leak Detection: The fitting is designed to be leaky if unpressed, ensuring installers can easily identify any unpressed connections during installation, increasing system safety and reliability.
Reliable Seal: Equipped with a CIIR black seal ring, the elbow provides a leak-proof connection, ensuring a secure fit for a variety of system pressures and temperatures.
Protected Installation: The pressing socket is equipped with a transparent protection plug, ensuring that the seal rings remain free from dirt or debris during installation, providing a clean and hygienic connection.
Easy Identification: The fitting includes pressing indicators, making it easy to confirm proper installation and differentiate between materials, preventing confusion with third-party components.
Versatile Application: Suitable for surface-mounted or concealed installations, this elbow can be used in a wide range of plumbing and heating systems, offering flexibility for different project requirements.
SKU
Art. no.
DN
d, ø (mm)
R (inches)
arc (degrees)
L (cm)
H (cm)
Z (cm)
486815
63873
12 / 15
15
1/2
90
3.5
3.1
1.5
486817
63884
15
18
1/2
90
3.5
3.4
1.5
486819
63885
20
22
3/4
90
4.8
4.4
2.7
486820
63886
25
28
1
90
5.8
5.3
3.5
486821
63887
32
35
1 1/4
90
5.5
4.7
2.9
486822
63888
40
42
1 1/2
90
6.2
5.1
3.2
486823
63889
50
54
2
90
7
6.3
3.5
486816
63894
12 / 10
15
3/8
90
3.2
2.7
1.2
486818
63895
15 / 20
18
3/4
90
3.8
3.3
1.8
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
