Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Ring: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed (up to 54 mm)
Applications: Potable water installations, heating and cooling circuits
Installation: Suitable for surface-mounted and concealed systems
Description

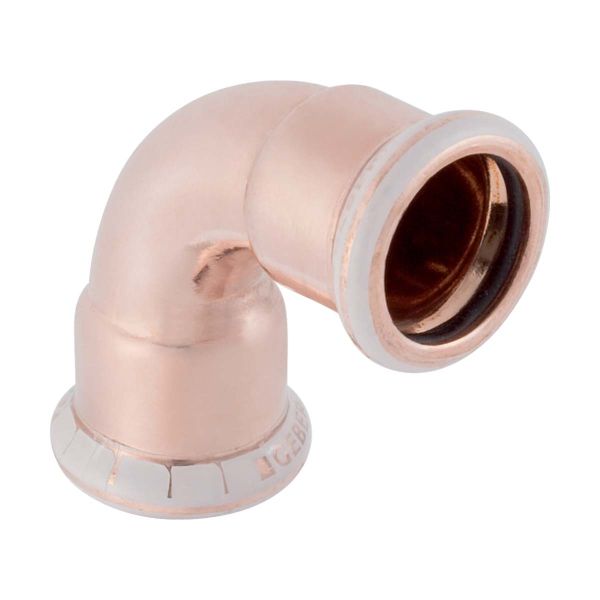

The Geberit Mapress Copper Elbow 90° is designed to facilitate smooth directional changes in copper piping systems, particularly in potable water, heating, and cooling installations. This elbow allows for a 90-degree turn in your pipework while maintaining a secure and reliable connection. Its press-fit technology ensures quick and easy installation, eliminating the need for hot works such as welding or soldering.
Key Features
High-Quality Copper Material: Made from Cu-DHP copper CW024A (EN 1412), the tee fitting ensures durability, excellent conductivity, and corrosion resistance.
Safe and Efficient Installation: The press-fit technology eliminates the need for welding or soldering, reducing fire hazards and lowering labour costs.
Leak Detection: Fittings are leaky if unpressed up to diameters of 54 mm, ensuring that any missed connections are easily detected before finalising the installation.
Reliable Sealing: Fitted with CIIR black seal rings for sizes up to 54 mm, and EPDM black seal rings for sizes over 54 mm, offering excellent sealing performance.
Universal Application: Suitable for both surface-mounted and concealed installations, the tee can be used in a variety of plumbing and heating systems.
Colour Indicators: Features transparent protection plugs and colour-coded indicator rings, making it easy to identify product materials and application ranges, preventing mix-ups with third-party products.
SKU
Article Number
DN
d
arc
L
Z
486715
60102
12
15 mm
90 °
3.8 cm
1.8 cm
486716
60103
15
18 mm
90 °
4.2 cm
2.2 cm
486717
60104
20
22 mm
90 °
4.7 cm
2.6 cm
486718
60105
25
28 mm
90 °
5.7 cm
3.4 cm
486719
60106
32
35 mm
90 °
6.5 cm
3.9 cm
486720
60107
40
42 mm
90 °
7.6 cm
4.6 cm
486721
60108
50
54 mm
90 °
9.5 cm
6 cm
486722
60110
65
66.7 mm
90 °
14.1 cm
9.1 cm
486723
60111
65
76.1 mm
90 °
15.9 cm
10.6 cm
486724
60112
80
88.9 mm
90 °
18.5 cm
12.5 cm
486725
60113
100
108 mm
90 °
23 cm
15.5 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
