Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Rings: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit
Leak Detection: Leaky if unpressed (up to 54 mm
Installation: Suitable for both surface-mounted and concealed systems
Description

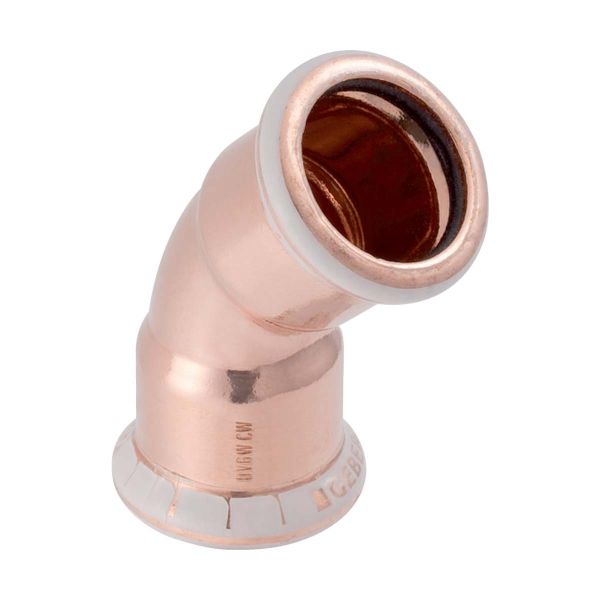

The Geberit Mapress Copper Elbow 45° is designed for creating smooth, angled changes in copper pipe systems, enabling a 45-degree turn in the flow of water or other fluids. This fitting is ideal for potable water installations and heating or cooling circuits, offering a secure and durable connection without the need for soldering or welding. The press-fit technology simplifies installation, ensuring a clean and safe fitting process, particularly in renovation projects or confined spaces.
Key Features
High-Quality Copper Material: Made from Cu-DHP copper CW024A (EN 1412), the tee fitting ensures durability, excellent conductivity, and corrosion resistance.
Safe and Efficient Installation: The press-fit technology eliminates the need for welding or soldering, reducing fire hazards and lowering labour costs.
Leak Detection: Fittings are leaky if unpressed up to diameters of 54 mm, ensuring that any missed connections are easily detected before finalising the installation.
Reliable Sealing: Fitted with CIIR black seal rings for sizes up to 54 mm, and EPDM black seal rings for sizes over 54 mm, offering excellent sealing performance.
Universal Application: Suitable for both surface-mounted and concealed installations, the tee can be used in a variety of plumbing and heating systems.
Colour Indicators: Features transparent protection plugs and colour-coded indicator rings, making it easy to identify product materials and application ranges, preventing mix-ups with third-party products.
SKU
Article Number
DN
d
arc
L
Z
486704
60602
12
15 mm
45 °
2.8 cm
0.8 cm
486705
60603
15
18 mm
45 °
2.9 cm
0.9 cm
486706
60604
20
22 mm
45 °
3.2 cm
1.1 cm
486707
60605
25
28 mm
45 °
3.7 cm
1.4 cm
486708
60606
32
35 mm
45 °
4 cm
1.4 cm
486709
60607
40
42 mm
45 °
4.7 cm
1.7 cm
486710
60608
50
54 mm
45 °
5.7 cm
2.2 cm
486711
60610
65
66.7 mm
45 °
9.2 cm
4.2 cm
486712
60611
65
76.1 mm
45 °
10.3 cm
5 cm
486713
60612
80
88.9 mm
45 °
11.7 cm
5.7 cm
486714
60613
100
108 mm
45 °
14.3 cm
6.8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
