Material: Non-alloy steel 1.0034 E195 (EN 10305) with brass union nut
Seal Ring: CIIR, black
Flat Gasket Material: EPDM
Temperature Range: 0–100°C (with EPDM flat gasket)
Exterior Finish: Zinc-plated for corrosion resistance
Leak Proofing: Leaky when unpressed for installation safety
Description

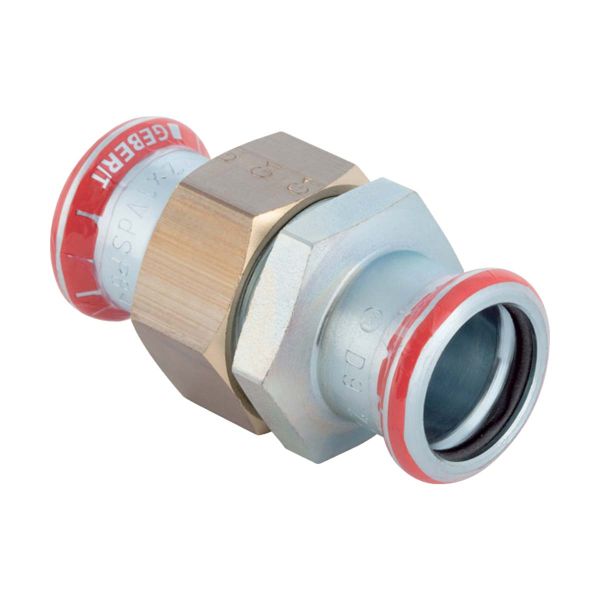

The Geberit Mapress Carbon Steel Union is designed to securely connect two pipes within a press-fit system, while also allowing for easy disconnection and reconnection when needed. This fitting is ideal for high-pressure applications in heating, cooling, and industrial systems, where flexible and robust connections are essential. Its zinc-plated exterior and durable construction ensure long-lasting performance, making it suitable for a wide range of environments.
Key Features
Pressing Indicator: Provides a clear visual confirmation that the fitting has been correctly pressed, ensuring a reliable and permanent connection.
Leak Detection: Leaks if unpressed, allowing installers to quickly identify any unpressed fittings before system pressurisation, ensuring safety and installation quality.
Zinc-Plated Exterior: The non-alloy steel body is zinc-plated, offering excellent resistance to corrosion, making the union suitable for use in both indoor and outdoor applications.
Brass Union Nut: The union nut is made of brass, providing enhanced durability and corrosion resistance for long-term performance.
CIIR Seal Ring & EPDM Flat Gasket: Features a black CIIR (chlorinated isobutylene-isoprene rubber) seal ring and an EPDM flat gasket, ensuring a secure and leak-proof connection while withstanding temperatures from 0 to 100°C.
Pressing Socket with Protection Plug: The pressing socket includes a transparent protection plug to protect against contamination and damage during storage and transport.
SKU
Art. no.
DN
d, ø (mm)
G (inch)
L (cm)
Z (cm)
487310
25319
10
12
1/2
5.8
2.1
487311
25320
12
15
3/4
6.6
2.6
487312
25321
15
18
3/4
6.9
2.9
487313
25322
20
22
1
7.2
3
487314
25323
25
28
1 1/4
7.7
3.1
487315
25324
32
35
1 1/2
8.2
3
487316
25325
40
42
1 3/4
9.5
3.5
487317
25326
50
54
2 3/8
11.3
4.3
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
