Exterior Finish: Zinc-plated for corrosion resistance
Design: Reducing cross with 30-degree branch for connecting pipes of different diameters
Leak Proofing: Leaky when unpressed for installation safety
Description

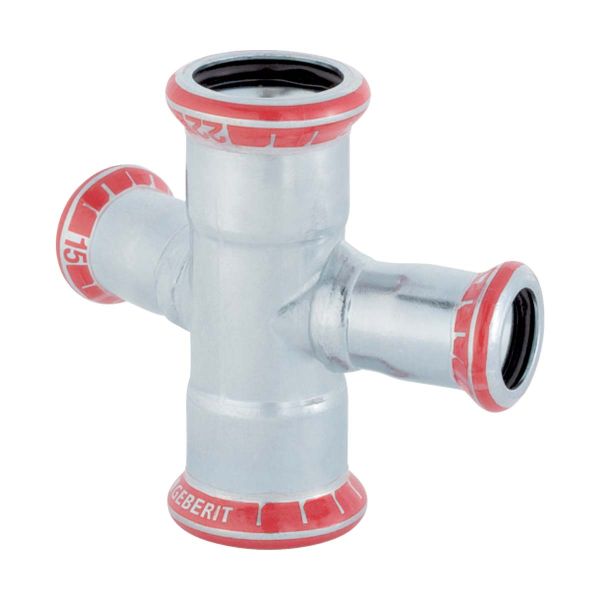

The Geberit Mapress Carbon Steel Reducing Pipe Cross 30° is designed to connect four pipe sections at a 30-degree angle while reducing the diameter of one or more connections. This fitting is ideal for use in high-pressure applications such as heating, cooling, and industrial systems, where efficient flow distribution and flexibility in pipe configuration are required. Its zinc-plated finish ensures durability and corrosion resistance, making it suitable for both indoor and outdoor installations.
Key Features
Pressing Indicator: Includes a visible pressing indicator to ensure that the fitting has been properly pressed, guaranteeing a secure and leak-proof connection during installation.
Leak Detection: Leaks if unpressed, providing a safety feature that alerts installers to fittings that haven’t been securely connected before system pressurisation.
Zinc-Plated Exterior: The non-alloy steel body is zinc-plated for excellent corrosion resistance, making it suitable for use in demanding environments.
CIIR Seal Ring: The black CIIR (chlorinated isobutylene-isoprene rubber) seal ring ensures a durable, leak-proof seal, even under high-pressure conditions.
Pressing Socket with Protection Plug: Comes with a transparent protection plug to safeguard the pressing socket from contamination or damage during transportation and storage, ensuring readiness for installation.
Reducing Design: Allows for connection of pipes with different diameters, optimising flow distribution and offering flexibility in system design.
SKU
Art. no.
DN
d, ø (mm)
d1, ø (mm)
arc (degrees)
L (cm)
L1 (cm)
l (cm)
Z (cm)
Z1 (cm)
487189
21404
15 / 12
18
15
30
6.8
4
3.4
1.4
2
487190
21406
20 / 12
22
15
30
7.4
4.2
3.7
1.6
2.2
487191
21409
25 / 12
28
15
30
8.4
4.5
4.2
1.9
2.5
