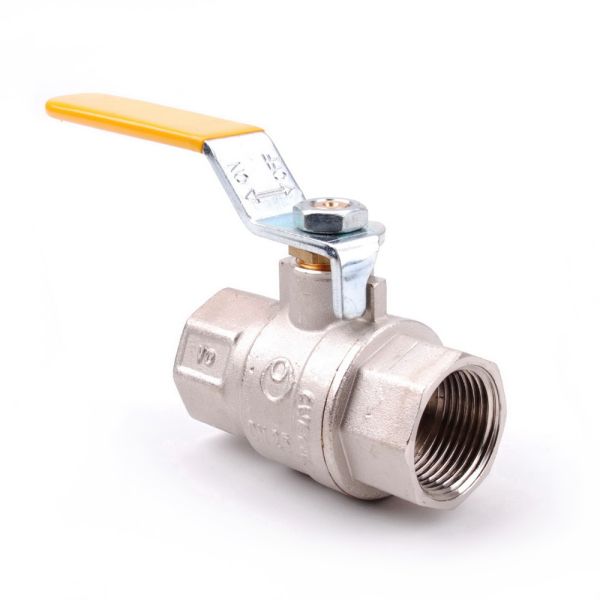

Gas BSP Taper F/F
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickle Plated Brass
- Female / Female BSPT Thread
- Wras Approved
- PTFE Seats and Seals
- Pressure rated to up to 40 bar (dependent on size)
- Operating temperature range of -20°C to 60°C
- Anti Blow Out Stem>
- WRAS and EN331 Approved
 |
Number | Part Name | Material |
| 1 | Body | Brass Nickle Plated | |
| 2 | Body End | Brass Nickle Plated | |
| 3 | Seat | PTFE | |
| 4 | Ball | Brass Chrome Plated | |
| 5 | Stem | Brass | |
| 6 | O Rings | FP | |
| 7 | Stem Seat | PTFE | |
| 8 | Packing Nut | Brass | |
| 9 | Lever | Steel / PVC-Plastic Coated | |
| 9/1 | Lockable Lever | Steel / PVC-Plastic Coated | |
| 10 | Nut | Steel / Zinc Plated |
Â
| Product Code | Thread DN (inch) | Ø (mm) | F (mm) | S (mm) | H (mm) | L (mm) | L1 (mm) | L2 (mm) | Ch (mm) |
| 353557 | 1/4 | 10 | 10 | 45 | 41 | 80 | 52 | 95 | 21 |
| 353558 | 3/8 | 10 | 10 | 45 | 41 | 80 | 52 | 95 | 21 |
| 353559 | 1/2 | 15 | 15 | 63 | 54 | 90 | 62 | 120 | 26 |
| 353560 | 3/4 | 20 | 16 | 71 | 58 | 90 | 62 | 120 | 31 |
| 353561 | 1 | 25 | 19 | 83 | 66 | 125 | 72 | 150 | 38 |
| 353562 | 1 1/4 | 32 | 21 | 92 | 71 | 125 | - | 150 | 48 |
| 353563 | 1 1/2 | 40 | 21 | 104 | 80 | 140 | - | 160 | 55 |
| 353564 | 2 | 50 | 26 | 124 | 88 | 140 | - | 160 | 68 |
| 353565 | 2 1/2 | 61 | 27 | 140 | 131 | 250 | - | - | 85 |
| 353566 | 3 | 74 | 28 | 159 | 140 | 250 | - | - | 99 |
| 353556 | 4 | 95 | 35 | 195 | 156 | 250 | - | - | 125 |
Â
Useful Info:
This Ball Valve allows you to connect two male BSPT threads while being able to securely shut off the flow of gas from one side to the other.
Â
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
