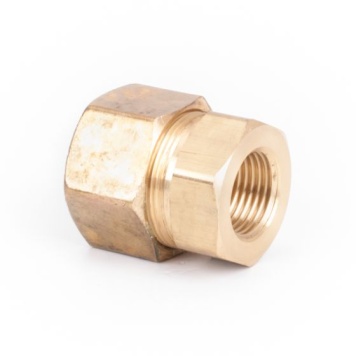

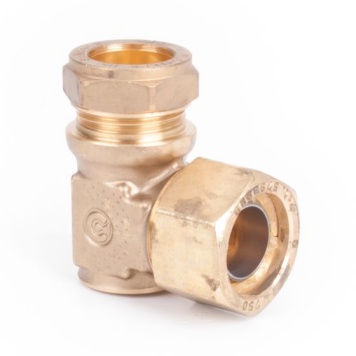

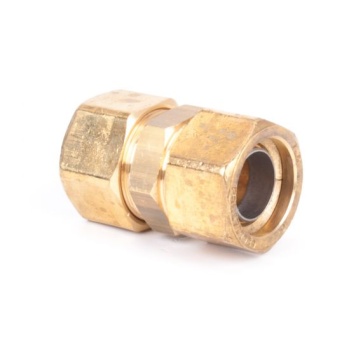

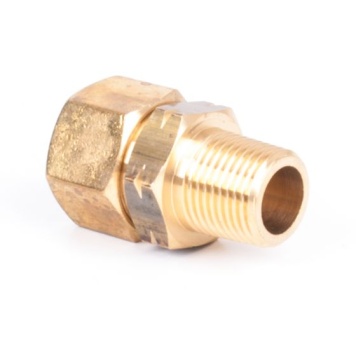

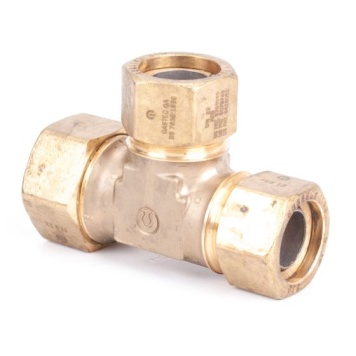

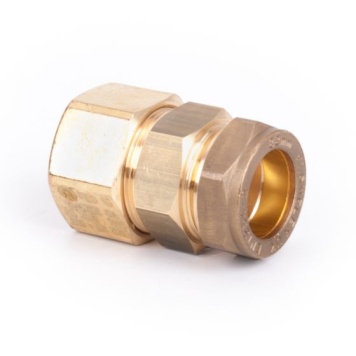

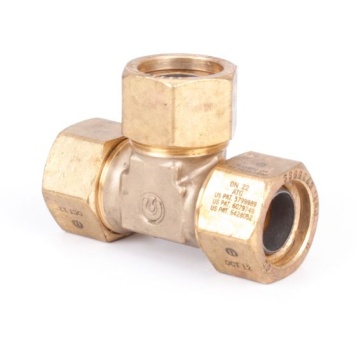

TracPipe Fittings

Key Features / Tech Specs:

• Material: brass
• Compatible with TracPipe and TracPipeCC
• No need for heated jointing
• Incorporate AutoFlare technology to provide non-leaking sealed gas joints
• High quality and durable
• BS 7838 approved
• Tested by Advantica
• BSI kitemark

Basic Fitting Guidelines:

Pipestock recommend that you use the manufacturer's specific fitting instructions and the advice below should be considered a guideline only.

TracPipe:

1. Cut the TracPipe pipe to the correct length and cut between two corrugations with a tube cutter.
2. With great care, cut and strip back the plastic cover 25mm from the cut end of the pipe.
3. Place the fitting into the back nut and engage threads. The fitting is designed to form a leak tight seat on the stainless steel piping as you tighten it.
4. Tighten the nut and body as though you were making up a flared tubing joint. Observe the relation between hex flats at this point and continue to tighten for two additional hex flats (one-third turn) to obtain required torque and final leak-tight metal-to-metal seal.
5. Perform gas tightness test.
6. After test, use self-bonding silicone TracPipe tape to cover any exposed steel behind the fitting nut to reduce the possibility of future corrosive attack.

TracPipeCC:

1. Cut the TracPipeCC pipe to the correct length and locate where the red pulling string is under the outer cover.
2. From this point, lightly score along the length of the outer cover for 200mm without fully penetrating it.
3. Using a pair of pliers, pull the string through the score line to split the outer cover, and then gently pull the outer cover away from the inner cover.
4. At the end of the split, lightly score around the circumference of the pipe, making sure to not fully penetrate the outer cover.
5. Carefully pull the outer cover away along the score line until the whole section is removed. Inspect the inner cover to ensure it has not been penetrated.
6. Cut off the the exposed red pulling string.
7. With great care, cut and strip back the inner cover 25mm from the cut end of the pipe.
8. Place the fitting into the back nut and engage threads. The fitting is designed to form a leak tight seat on the stainless steel piping as you tighten it.
9. Tighten the nut and body as though you were making up a flared tubing joint. Observe the relation between hex flats at this point and continue to tighten for two additional hex flats (one-third turn) to obtain required torque and final leak-tight metal-to-metal seal.
10. Perform gas tightness test.
11. After test, use self-bonding silicone TracPipe tape to cover any exposed steel behind the fitting nut to reduce the possibility of future corrosive attack.

Useful Info:

TracPipe fittings are innovative with their use of AutoFlare technology. AutoFlare removes the need for hot-work to be done when installing a TracPipe gas pipe system. The design means that as the fitting is tightened, it forces the pipe to flare outwards, in perfect symmetry, onto the inside of the fitting forming a sealed joint which conforms to the relevant British Gas industry standards.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
