Useful Information

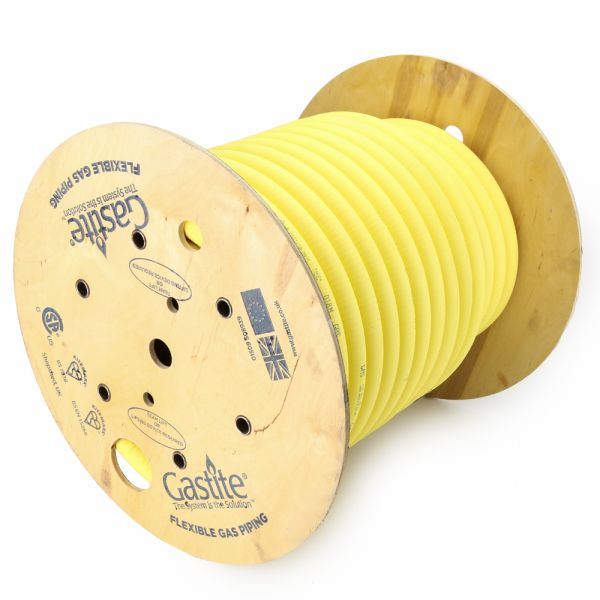

Gastite CSST pipe coils are available in sizes 15mm to 50mm.

ADVISORY: On 1st January 2020, Gastite made a nominal sizing increase to the DN15, DN20, and DN40 pipe & fittings. The older nominal sized products are still available upon request.

As an alternative to traditional copper gas piping, Gastite can decrease installation time by 30%-70%, as no hot joining is required, and can form a system with up to 75% fewer fittings than traditional systems.

Gastite is manufactured from corrugated annealed stainless steel, which makes it more flexible than other brands which have not been heat-treated, and is flexible enough that it can be shaped by hand.

Gastite pipe clearly displays the word 'GAS' on the outer cover.



Material Corrugated stainless steel, yellow polyethylene cover
Working Pressure 75mbar
Minimum Wall Thickness 0.254mm
Gas Suitability Natural, propane, butane
Standards BS EN 15266



Approvals:

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approval KM 587681



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
396609 Gastite Coil 30m x 15mm £427.39 45%
£235.06
396610 Gastite Coil 75m x 15mm £1,068.47 45%
£587.66
396611 Gastite Coil 30m x 20mm £544.78 45%
£299.63
396612 Gastite Coil 75m x 20mm £1,361.96 45%
£749.08
396613 Gastite Coil 30m x 25mm £753.41 45%
£414.38
396614 Gastite Coil 45m x 25mm £1,130.11 45%
£621.56
396615 Gastite Coil 75m x 25mm £1,883.52 45%
£1,035.94
396616 Gastite Coil 90m x 25mm £2,260.22 45%
£1,243.12
396617 Gastite Coil 45m x 32mm £1,595.11 45%
£877.31
396618 Gastite Coil 75m x 32mm £2,658.51 45%
£1,462.18
396619 Gastite Coil 90m x 32mm £3,190.21 45%
£1,754.62
396620 Gastite Coil 45m x 40mm £2,162.12 45%
£1,189.17
396621 Gastite Coil 75m x 40mm £3,603.54 45%
£1,981.95
396622 Gastite Coil 45m x 50mm £3,326.08 45%
£1,829.34
