P-Max Sleeved Coil
Useful Information

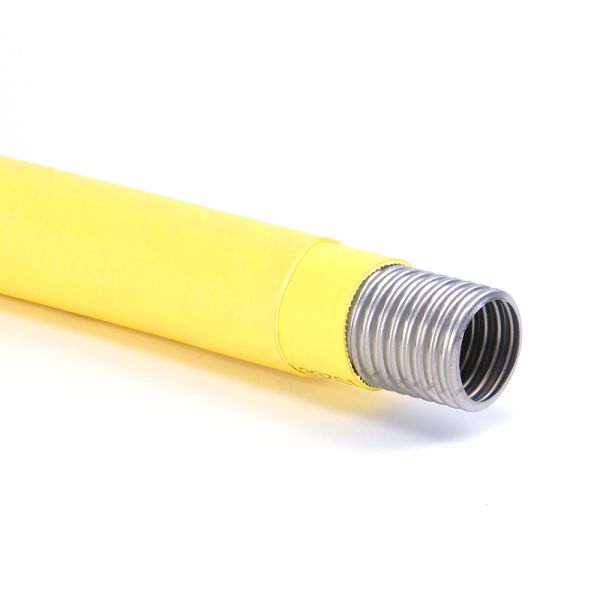

Gas Flex System P-Max features an integrated containment sleeve which wraps around the inner CSST coil.
The outer sleeve is rigid on the underside, ensuring that there is space between the outer sleeve and the pipe jacket, allowing space to ventilate any gas in the event of a leak.
- Manufacturer: Gas Flex Systems
- Quick & easy installation - Up to 70% faster than rigid pipe
- For use with GFS Push & Seal Fittings
- Flexible forming by hand
- Conforms to EN 10380 produced in 316L (1,4404) stainless steel to EN 10028-7 standards
- Available sizes: 15m - 90m
- Not for use with hot works
- Can be buried without mechanical protection
| DN | Outer Diameter w/ Both Outer Sleeves | Outer Diameter Inner Sleeve | Outer Diameter No Sleeve | Inner Diameter | Lengths (m) |
| 15 | 22.5 | 20.9 | 19.9 | 16.0 | 30, 75 |
| 20 | 28.9 | 26.4 | 25.4 | 20.0 | 30, 75 |
| 25 | 34.0 | 32.4 | 31.4 | 25.4 | 30, 45, 75, 90 |
| 32 | 43.4 | 41.8 | 40.8 | 33.0 | 45, 75, 90 |
| 40 | 50.6 | 49.0 | 48.0 | 40.7 | 45, 75 |
| 50 | 62.9 | 61.3 | 60.3 | 50.8 | 45 |
