PVC Elbow 90° Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 3"
- Pressure rating: 15 bar
- Temperature range: 0°C to 60°C
- Connection type: Solvent weld/Threaded
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu 90-degree plain x threaded elbow provides a reliable way to change direction while transitioning between a solvent weld PVCu pipe connection and a BSP threaded component. It is commonly used when connecting pipework to pumps, valves, filters or measuring equipment that require a threaded interface.
The solvent weld socket offers a permanent, strong bond when used with PVCu solvent cement, while the threaded end provides a secure mechanical joint suitable for repeated assembly. Manufactured from corrosion-resistant PVCu, the fitting delivers long-term durability across water supply, industrial and general engineering applications. Its smooth internal bore supports efficient flow through the right-angle change.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Mixed connection flexibility: Combines solvent weld and BSP threads for versatile system integration
- Reliable 90-degree direction change: Enables clean pipe routing into equipment or tight spaces
- Strong solvent weld joint: Provides a permanent connection on the plain end
- Durable threaded outlet: Allows secure attachment to pumps, valves or instruments
- Corrosion-resistant PVCu: Maintains long service life without rust or scale
- Smooth internal bore: Helps maintain good flow characteristics through the bend

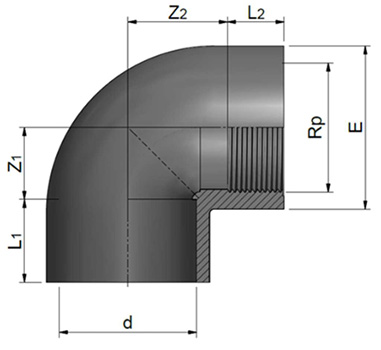

Dimensions
| SKU | Nominal Size / d / Rp (") | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) |
| 356803 | 1/2 | 17 | 15 | 11 | 13 | 28 |
| 356804 | 3/4 | 20 | 16.3 | 14 | 17 | 34 |
| 356805 | 1 | 23 | 19.1 | 17 | 21 | 42 |
| 356806 | 1 1/4 | 27 | 21.4 | 21 | 27 | 51 |
| 356807 | 1 1/2 | 32 | 21.4 | 26 | 37 | 61 |
| 356808 | 2 | 39 | 26 | 33 | 46 | 75 |
| 356809 | 3 | 52 | 33.3 | 47 | 65 | 106 |
