PVCu Pipe Metric 16 Bar

Loading...
Useful Information

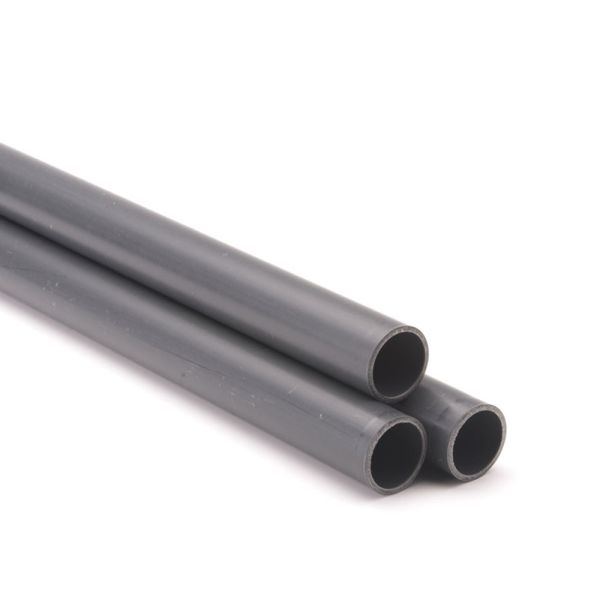

Effast metric PVC pipe, 16 bar, is available in sizes 16mm to 160mm, in lengths of 3m or 6m.

A 6m length of 10 bar PVC pipe may be supplied if two 3m lengths are unavailable. If you would prefer 3m lengths, please contact us.

Please note: this PVCu pipe is not suitable for use with compressed air.

Pipe cannot be returned, no refunds or exceptions. This is due to the Bespoke, Physical and Technical characteristics of this industrial product. Please double-check your application and sizing, if in doubt call us, we are here to help.

Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 16 bar at 20°C
Operating Temperature 0°C to +60°C
Standards BS EN 1452 Part 2



Product Code Outside Diameter (mm) Nominal Bore (mm) Average Wall Thickness (mm) Length (m) Weight (kg)
383251 16 13.6 1.2 3 0.44
383250 16 13.6 1.2 6 0.87
356608 20 17 1.5 3 0.56
356607 20 17 1.5 6 1.12
356610 25 21.2 1.9 3 0.88
356609 25 21.2 1.9 6 1.75
356612 32 27.1 2.4 3 1.44
356611 32 27.1 2.4 6 2.87
356614 40 34 3 3 2.19
356613 40 34 3 6 4.38
356616 50 42.6 3.7 3 3.35
356615 50 42.6 3.7 6 6.7
356618 63 53.6 4.7 3 5.35
356617 63 53.6 4.7 6 10.7
356620 75 63.8 5.6 3 7.59
356619 75 63.8 5.6 6 15.17
356622 90 76.6 6.7 3 10.82
356621 90 76.6 6.7 6 21.63
356624 110 96.8 6.6 3 13.25
356623 110 96.8 6.6 6 26.5
359185 160 141 9.5 3 28
359184 160 141 9.5 6 56



Temperature to Pressure Relationship
0 16.0
20 16.0
30 12.8
40 10.2
50 7.0
60 4.1



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383251PVCu Pipe 16 Bar 3m x 16mm £6.26 60%
£2.50
383250PVCu Pipe 16 Bar 6m x 16mm £12.63 56%
£5.56
356608PVCu Pipe 16 Bar 3m x 20mm £9.00 63%
£3.33
356607PVCu Pipe 16 Bar 6m x 20mm £18.07 59%
£7.41
356610PVCu Pipe 16 Bar 3m x 25mm £14.07 63%
£5.21
356609PVCu Pipe 16 Bar 6m x 25mm £28.12 59%
£11.53
356612PVCu Pipe 16 Bar 3m x 32mm £22.40 63%
£8.29
356611PVCu Pipe 16 Bar 6m x 32mm £44.73 59%
£18.34
356614PVCu Pipe 16 Bar 3m x 40mm £34.96 63%
£12.93
356613PVCu Pipe 16 Bar 6m x 40mm £69.91 59%
£28.66
356616PVCu Pipe 16 Bar 3m x 50mm £53.55 63%
£19.81
356615PVCu Pipe 16 Bar 6m x 50mm £107.07 59%
£43.90
356618PVCu Pipe 16 Bar 3m x 63mm £72.19 63%
£26.71
356617PVCu Pipe 16 Bar 6m x 63mm £144.31 59%
£59.17
356620PVCu Pipe 16 Bar 3m x 75mm £102.21 63%
£37.82
356619PVCu Pipe 16 Bar 6m x 75mm £204.35 59%
£83.78
356622PVCu Pipe 16 Bar 3m x 90mm £145.60 63%
£53.87
356621PVCu Pipe 16 Bar 6m x 90mm £291.21 59%
£119.40
356624PVCu Pipe 16 Bar 3m x 110mm £211.35 63%
£78.20
356623PVCu Pipe 16 Bar 6m x 110mm £422.68 59%
£173.30
359185PVCu Pipe 16 Bar 3m x 160mm £444.06 60%
£177.63
359184PVCu Pipe 16 Bar 6m x 160mm £888.20 56%
£390.81
