PVCu Pipe Metric 10 Bar
Useful Information

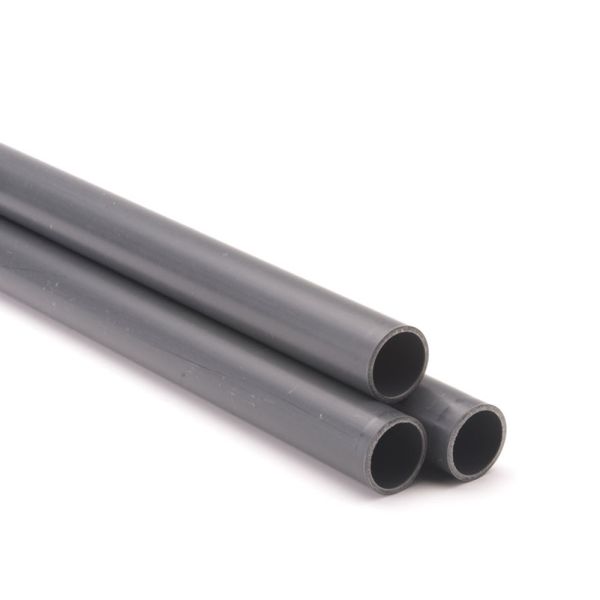

Effast metric PVC pipe, 10 bar, is available in sizes 40mm to 315mm, in lengths of 3m or 6m.
A 6m length of 10 bar PVC pipe may be supplied if two 3m lengths are unavailable. If you would prefer 3m lengths, please contact us.
Please note: this PVCu pipe is not suitable for use with compressed air.
| Manufacturer | Effast |
| Material | PVCu - polyvinyl chloride unplasticised |
| Pressure Rating | 10 bar at 20°C |
| Operating Temperature | 0°C to +60°C |
| Standards | BS EN 1452 Part 2 |
| Product Code | Outside Diameter (mm) | Nominal Bore (mm) | Average Wall Thickness (mm) | Length (m) | Weight (kg) |
| 356587 | 40 | 36.2 | 1.9 | 3 | - |
| 356586 | 40 | 36.2 | 1.9 | 6 | - |
| 356589 | 50 | 45.2 | 2.4 | 3 | - |
| 356588 | 50 | 45.2 | 2.4 | 6 | - |
| 356591 | 63 | 57 | 3 | 3 | 3.55 |
| 356590 | 63 | 57 | 3 | 6 | 7.1 |
| 356593 | 75 | 67.8 | 3.6 | 3 | 5.07 |
| 356592 | 75 | 67.8 | 3.6 | 6 | 10.14 |
| 356595 | 90 | 81.4 | 4.3 | 3 | 7.27 |
| 356594 | 90 | 81.4 | 4.3 | 6 | 14.53 |
| 356597 | 110 | 101.6 | 4.2 | 3 | 8.78 |
| 356596 | 110 | 101.6 | 4.2 | 3 | 17.55 |
| 356599 | 125 | 115.4 | 4.8 | 3 | 11.29 |
| 356598 | 125 | 115.4 | 4.8 | 6 | 22.58 |
| 359399 | 140 | 125 | 5.4 | 3 | 14.4 |
| 359398 | 140 | 125 | 5.4 | 6 | 28.8 |
| 356601 | 160 | 147.6 | 6.2 | 3 | 18.75 |
| 356600 | 160 | 147.6 | 6.2 | 6 | 37.5 |
| 383243 | 200 | 184.6 | 7.7 | 3 | 21.9 |
| 383242 | 200 | 184.6 | 7.7 | 6 | 43.8 |
| 383245 | 225 | 207.8 | 8.6 | 3 | 27.51 |
| 383244 | 225 | 207.8 | 8.6 | 6 | 55.02 |
| 383247 | 250 | 230.8 | 9.6 | 3 | 33.58 |
| 383246 | 250 | 230.8 | 9.6 | 6 | 67.16 |
| 383249 | 315 | 290.8 | 12.1 | 3 | 53.88 |
| 383248 | 315 | 290.8 | 12.1 | 6 | 107.76 |
| Temperature to Pressure Relationship | |
| Temperature (°C) | Maximum Pressure (bar) |
| 0 | 10.0 |
| 20 | 10.0 |
| 30 | 8.0 |
| 40 | 6.4 |
| 50 | 4.4 |
| 60 | 2.6 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
