PVCu Metric Stub

Loading...
Useful Information

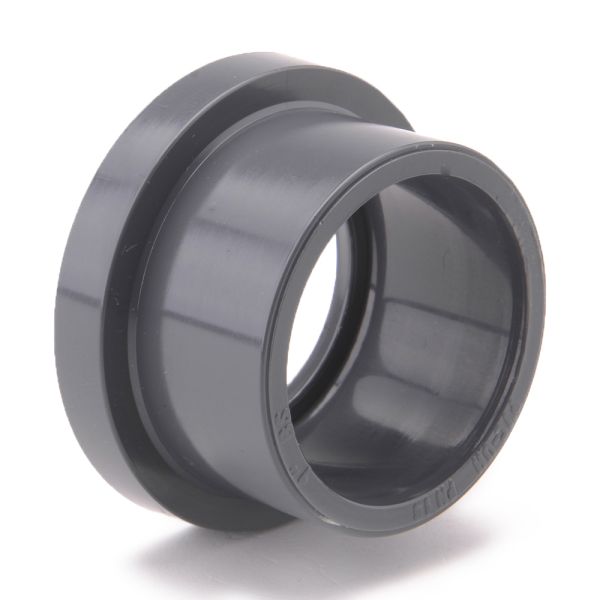

Effast plain PVC stub flanges are available in sizes 20mm to 315mm.

This stub flange is designed for use with a backing ring, along with a gasket and bolt set.

To join a length of PVC pipe to this flange, you will require solvent cement.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C, 9 bar over 6".
Operating Temperature 5°C to +60°C



PVC Stub Flange Plain Diagram

Product Code Nominal Size (mm) L (mm) Z (mm) d (mm) S (mm) E (mm)
357006 20 16 3 27 6 34
357007 25 19 3 33 7 41
357008 32 22 3 41 7 50
357009 40 26 3 50 8 61
357010 50 31 3 61 8 73
357011 63 38 3 76 9 90
357012 75 44 3 90 10 106
357013 90 51 5 107 11 125
357014 110 61 5 131 12 150
357015 125 74 4 146 12 168
357016 140 78 6 163 13 188
357017 160 86 7 185 13 213
357018 200 106 7 232 18 254
357019 225 119 7 248 19 274
357020 250 131 9 279 20 308
357021 315 165 16 346 32 377



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited
