PVCu Metric Full Face PN10/16

Loading...
Useful Information

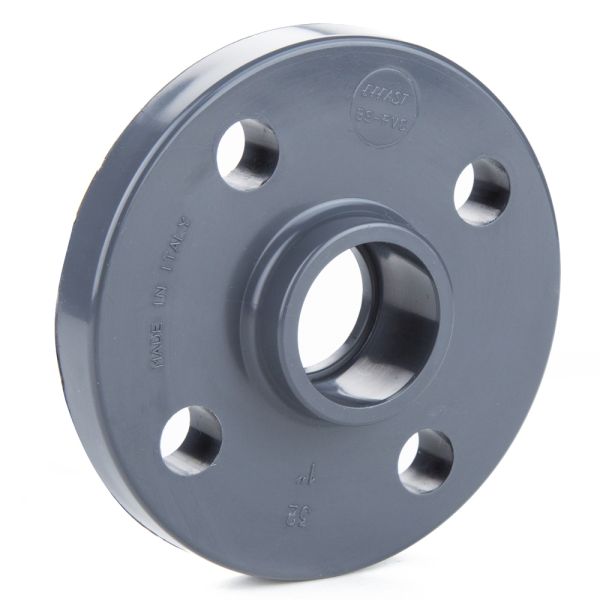

Effast plain PVC full face flanges (PN10/16) are available in sizes 20mm to 110mm.

This full face flange is designed to connect PVC pipe. Solvent cement is required to join the flange and pipe.

You will also require a gasket and a bolt set for flanging to a valve, a piece of machinery, or another flanged PVC pipe.

Drilled to BS EN1029-1 (formerly known as BS 4504) PN10/16.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C
Operating Temperature 5°C to +60°C



PVC Full Face PN10/16 Flange Plain Diagram

Product Code Nominal Size (mm) L (mm) Z (mm) E (mm) I (mm) F (mm) No. of Holes
356744 20 16 5 95 65 14 4
356745 25 19 5 105 75 14 4
356746 32 22 5 115 85 14 4
356747 40 26 5 142 100 18 4
356748 50 31 5 152 110 18 4
356749 63 38 5 165 125 18 4
356750 75 44 6 185 145 18 4
356751 90 51 7 200 160 18 8
356752 110 61 8 220 180 18 8
