PVCu Metric Blanking Flange PN10/16
Useful Information

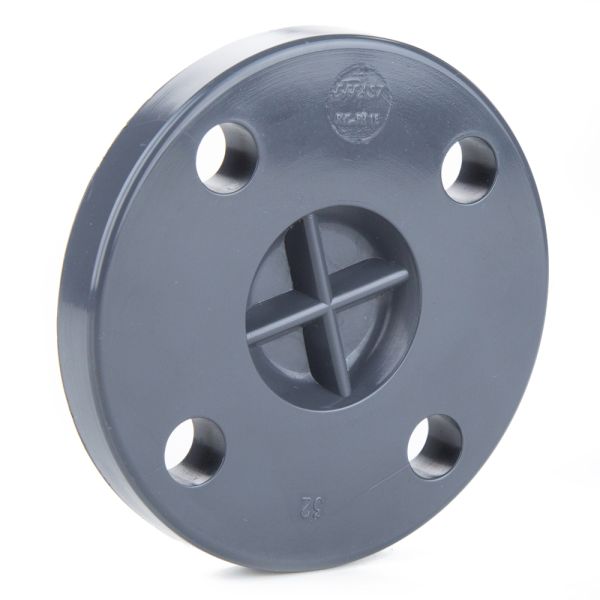

This PVC blanking flange is drilled to BS EN1029-1 (formerly known as BS 4504) and is used to bolt off a section of pipework.
To join a length of PVC pipe to this flange, you will require solvent cement.
| Material | Polyvinyl chloride - unplasticised |
| Pressure Rating | Up to 160mm = 15 bar at 20°C Above 160mm = 9 bar at 20°C |
| Operating Temperature | 5°C to 60°C |
| Product Code | Nominal Size (inch) | Nominal Size (mm) | E (mm) | S (mm) | I (mm) | f (mm) | No. of Holes |
| 356726 | 1/2 | 20 | 95 | 11 | 65 | 14 | 4 |
| 356727 | 3/4 | 25 | 105 | 12 | 75 | 14 | 4 |
| 356728 | 1 | 32 | 115 | 14 | 85 | 14 | 4 |
| 356729 | 1 1/4 | 40 | 142 | 15 | 100 | 18 | 4 |
| 356730 | 1 1/2 | 50 | 152 | 16 | 110 | 18 | 4 |
| 356731 | 2 | 63 | 165 | 18 | 125 | 18 | 4 |
| 356732 | 2 1/2 | 75 | 185 | 19 | 145 | 18 | 4 |
| 356733 | 3 | 90 | 200 | 20 | 160 | 18 | 8 |
| 356734 | 4 | 110 | 220 | 22 | 180 | 18 | 8 |
| 356735 | - | 125 | 230 | 24 | 190 | 18 | 8 |
| 356736 | 5 | 140 | 250 | 26 | 210 | 18 | 8 |
| 356737 | 6 | 160 | 285 | 28 | 240 | 22 | 8 |
| 356738 | 8 | 225 | 340 | 30 | 295 | 22 | 8 |
Approvals:
 |
WRAS approved Approval number 1705080 |
 |
BSI Kitemark approved Licence number KM60041 |
