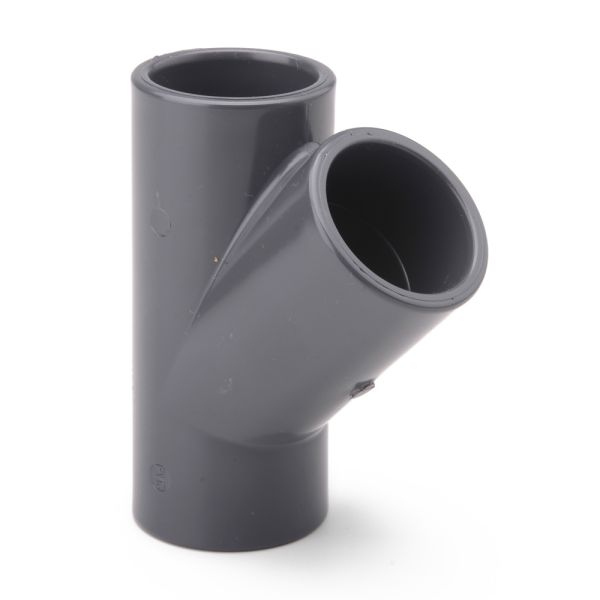

PVCu Metric Tee 45° Plain

Skip to the beginning of the images gallery

Useful Information

Effast plain PVC tee 45° fittings are available in sizes 20mm to 110mm.

This fitting is used to join three lengths of PVC pipe, of the same diameters.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

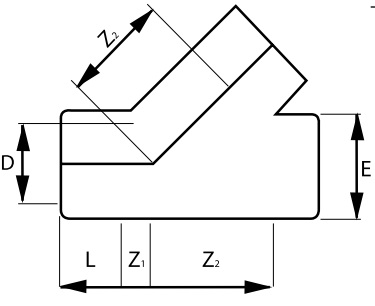

PVC Tee 45 Plain Diagram

Product Code	Nominal Size (mm)	L (mm)	Z1 (mm)	Z2 (mm)	E (mm)
357217	20	16	7	29	27
357218	25	19	7	39	33
357219	32	22	8	44	42
357220	40	26	10	54	50
357221	50	31	12	65	61
357222	63	38	14	80	74
359863	75	44	18	101	91
359864	90	51	20	122	106
359865	110	61	27	149	133

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
357217	PVCu Tee 45 Plain 20mm	£21.28	78%	£4.68
357218	PVCu Tee 45 Plain 25mm	£22.75	78%	£5.01
357219	PVCu Tee 45 Plain 32mm	£25.61	78%	£5.63
357220	PVCu Tee 45 Plain 40mm	£31.44	78%	£6.92
357221	PVCu Tee 45 Plain 50mm	£39.57	78%	£8.71
357222	PVCu Tee 45 Plain 63mm	£61.30	78%	£13.48
359863	PVCu Tee 45 Plain 75mm	£304.30	78%	£66.95
359864	PVCu Tee 45 Plain 90mm	£475.72	78%	£104.66
359865	PVCu Tee 45 Plain 110mm	£975.67	78%	£214.65
