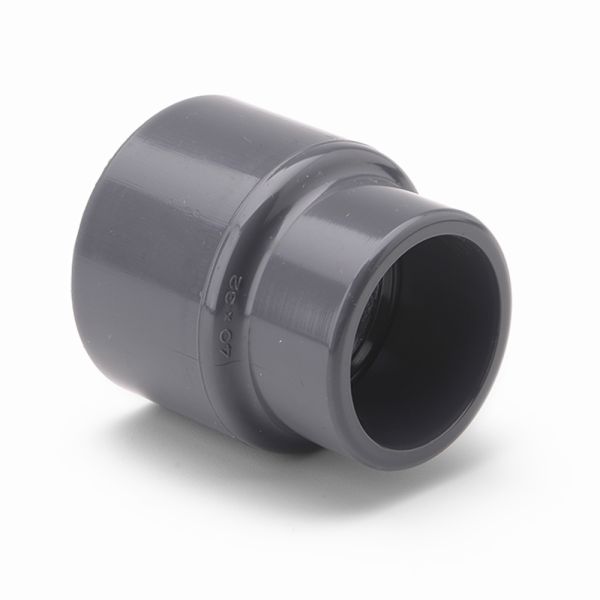

PVCu Metric Reducing Socket Plain

Loading...
Useful Information

Effast plain PVC socket fittings are available in sizes 20mm x 16mm to 140mm x 110mm.

This fitting is used to join two lengths of PVC pipe, of different diameters.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C
Operating Temperature 5°C to +60°C



PVC Reducing Socket Plain Metric

Product Code Nominal Size (mm) L1 (mm) L2 (mm) Z (mm) E1 (mm) E2 (mm)
359851 20 x 16 16 14 6 25 23
359852 25 x 20 19 16 6 32 28
359853 32 x 25 22 19 6 40 33
359854 40 x 32 26 22 10 50 41
359855 50 x 40 31 26 12 63 50
359856 63 x 40 38 26 17 75 50
359857 63 x 50 38 31 12 75 61
359858 75 x 63 44 38 18 90 75
359859 90 x 75 51 44 16 100 88
359860 110 x 90 61 51 17 125 106
359861 125 x 110 69 61 17 140 129
359862 140 x 110 76 61 18 160 129



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
359851PVCu Reducing Socket Plain 20mm x 16mm £3.15 78%
£0.69
359852PVCu Reducing Socket Plain 25mm x 20mm £3.36 78%
£0.74
359853PVCu Reducing Socket Plain 32mm x 25mm £5.14 78%
£1.13
359854PVCu Reducing Socket Plain 40mm x 32mm £8.51 78%
£1.87
359855PVCu Reducing Socket Plain 50mm x 40mm £12.45 78%
£2.74
359856PVCu Reducing Socket Plain 63mm x 40mm £16.74 78%
£3.68
359857PVCu Reducing Socket Plain 63mm x 50mm £16.74 78%
£3.68
359858PVCu Reducing Socket Plain 75mm x 63mm £39.40 78%
£8.67
359859PVCu Reducing Socket Plain 90mm x 75mm £56.57 78%
£12.44
359860PVCu Reducing Socket Plain 110mm x 90mm £76.70 78%
£16.87
359861PVCu Reducing Socket Plain 125mm x 110mm £134.44 78%
£29.58
359862PVCu Reducing Socket Plain 140mm x 110mm £162.85 78%
£35.83
