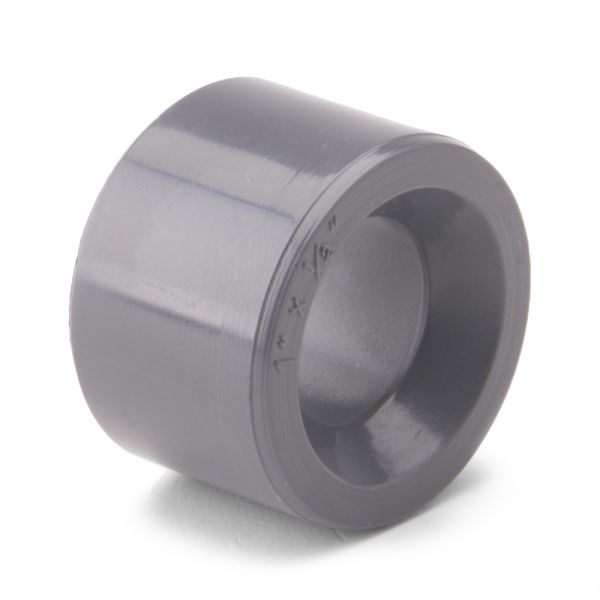

PVCu Metric Reducing Bush Plain

Skip to the beginning of the images gallery

More Info

Useful Information

Effast plain PVC reducing bush fittings are available in sizes 20mm x 16mm to 315mm x 250mm.

This fitting is used to reduce the diameter of one side of a PVC fitting. It is glued inside the socket using PVC solvent cement.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

PVC Reducing Bush Plain Diagram

Product Code	Nominal Size (mm)	L1 (mm)	L2 (mm)	Z (mm)	FIG
357058	20 x 16	14	26	14	A
357059	25 x 16	14	26	14	B
357060	25 x 20	3	34	14	A
357061	32 x 16	22	38	14	B
357062	32 x 20	26	43	14	B
357063	32 x 25	31	48	14	A
357064	40 x 20	38	56	14	B
357065	40 x 25	44	67	14	B
357066	40 x 32	51	78	14	A
357067	50 x 25	31	19	12	B
357068	50 x 32	31	22	9	B
357069	50 x 40	31	26	5	A
357070	63 x 32	38	22	16	B
357071	63 x 40	38	26	12	B
357072	63 x 50	38	31	7	A
357073	75 x 40	44	26	18	B
357074	75 x 50	44	31	13	B
357075	75 x 63	44	38	6	A
357076	90 x 50	51	31	20	B
357077	90 x 63	51	38	13	B
357078	90 x 75	51	44	7	A
357079	110 x 63	61	38	23	B
357080	110 x 75	61	44	17	B
357081	110 x 90	61	51	10	A
357082	125 x 75	69	44	25	B
357083	125 x 90	69	51	18	B
357084	125 x 110	69	61	8	A
357085	140 x 90	76	51	25	B
357086	140 x 110	76	61	15	B
357087	140 x 125	76	69	7	A
357088	160 x 110	86	61	25	B
357089	160 x 125	86	69	17	B
357090	160 x 140	86	76	10	A
357091	200 x 160	96	86	10	A
357092	225 x 160	119	86	33	B
357093	225 x 200	119	106	13	A
357094	250 x 160	132	54	12	B
357095	250 x 200	132	97	35	A
357096	250 x 225	132	107	25	A
357097	315 x 200	165	107	58	B
357098	315 x 225	165	120	45	B
357099	315 x 250	165	132	33	B

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
357058	PVCu Reducing Bush Plain 20mm x 16mm	£3.18	78%	You Pay: £0.70
357059	PVCu Reducing Bush Plain 25mm x 16mm	£3.64	78%	You Pay: £0.80
357060	PVCu Reducing Bush Plain 25mm x 20mm	£3.64	78%	You Pay: £0.80
357061	PVCu Reducing Bush Plain 32mm x 16mm	£4.53	78%	You Pay: £1.00
357062	PVCu Reducing Bush Plain 32mm x 20mm	£4.53	78%	You Pay: £1.00
357063	PVCu Reducing Bush Plain 32mm x 25mm	£4.53	78%	You Pay: £1.00
357064	PVCu Reducing Bush Plain 40mm x 20mm	£6.14	78%	You Pay: £1.35
357065	PVCu Reducing Bush Plain 40mm x 25mm	£6.14	78%	You Pay: £1.35
357066	PVCu Reducing Bush Plain 40mm x 32mm	£6.14	78%	You Pay: £1.35
357067	PVCu Reducing Bush Plain 50mm x 25mm	£7.31	78%	You Pay: £1.61
357068	PVCu Reducing Bush Plain 50mm x 32mm	£7.31	78%	You Pay: £1.61
357069	PVCu Reducing Bush Plain 50mm x 40mm	£7.31	78%	You Pay: £1.61
357070	PVCu Reducing Bush Plain 63mm x 32mm	£9.47	78%	You Pay: £2.08
357071	PVCu Reducing Bush Plain 63mm x 40mm	£9.47	78%	You Pay: £2.08
357072	PVCu Reducing Bush Plain 63mm x 50mm	£9.73	78%	You Pay: £2.14
357073	PVCu Reducing Bush Plain 75mm x 40mm	£18.09	78%	You Pay: £3.98
357074	PVCu Reducing Bush Plain 75mm x 50mm	£18.09	78%	You Pay: £3.98
357075	PVCu Reducing Bush Plain 75mm x 63mm	£18.09	78%	You Pay: £3.98
357076	PVCu Reducing Bush Plain 90mm x 50mm	£31.34	78%	You Pay: £6.89
357077	PVCu Reducing Bush Plain 90mm x 63mm	£31.34	78%	You Pay: £6.89
357078	PVCu Reducing Bush Plain 90mm x 75mm	£31.34	78%	You Pay: £6.89
357079	PVCu Reducing Bush Plain 110mm x 63mm	£43.09	78%	You Pay: £9.48
357080	PVCu Reducing Bush Plain 110mm x 75mm	£44.48	78%	You Pay: £9.79
357081	PVCu Reducing Bush Plain 110mm x 90mm	£44.48	78%	You Pay: £9.79
357082	PVCu Reducing Bush Plain 125mm x 75mm	£72.83	78%	You Pay: £16.02
357083	PVCu Reducing Bush Plain 125mm x 90mm	£72.83	78%	You Pay: £16.02
357084	PVCu Reducing Bush Plain 125mm x 110mm	£72.83	78%	You Pay: £16.02
357085	PVCu Reducing Bush Plain 140mm x 90mm	£94.65	78%	You Pay: £20.82
357086	PVCu Reducing Bush Plain 140mm x 110mm	£94.65	78%	You Pay: £20.82
357087	PVCu Reducing Bush Plain 140mm x 125mm	£94.65	78%	You Pay: £20.82
357088	PVCu Reducing Bush Plain 160mm x 110mm	£127.92	78%	You Pay: £28.14
357089	PVCu Reducing Bush Plain 160mm x 125mm	£127.92	78%	You Pay: £28.14
357090	PVCu Reducing Bush Plain 160mm x 140mm	£127.92	78%	You Pay: £28.14
357091	PVCu Reducing Bush Plain 200mm x 160mm	£254.29	78%	You Pay: £55.94
357092	PVCu Reducing Bush Plain 225mm x 160mm	£372.21	78%	You Pay: £81.89
357093	PVCu Reducing Bush Plain 225mm x 200mm	£372.21	78%	You Pay: £81.89
357094	PVCu Reducing Bush Plain 250mm x 160mm	£788.08	78%	You Pay: £173.38
357095	PVCu Reducing Bush Plain 250mm x 200mm	£788.08	78%	You Pay: £173.38
357096	PVCu Reducing Bush Plain 250mm x 225mm	£788.08	78%	You Pay: £173.38
357097	PVCu Reducing Bush Plain 315mm x 200mm	£1,253.69	78%	You Pay: £275.81
357098	PVCu Reducing Bush Plain 315mm x 225mm	£1,253.69	78%	You Pay: £275.81
357099	PVCu Reducing Bush Plain 315mm x 250mm	£1,253.69	78%	You Pay: £275.81
