PVCu Metric End Cap Plain
Useful Information

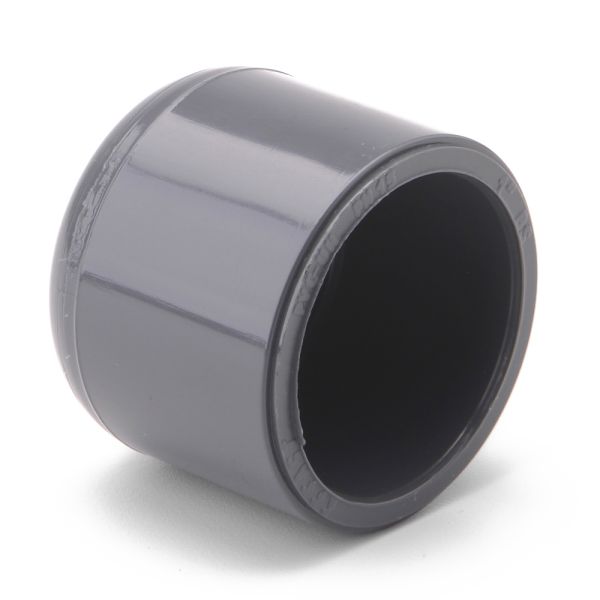

Effast plain PVC end cap fittings are available in sizes 16mm to 225mm.
This fitting is used to close off a length of PVC pipe.
| Manufacturer | Effast |
| Material | PVCu - polyvinyl chloride unplasticised |
| Pressure Rating | 15 bar at 20°C |
| Operating Temperature | 5°C to +60°C |
| Product Code | Nominal Size (mm) | L (mm) | H (mm) | E (mm) |
| 356569 | 16 | 14 | 26 | 23 |
| 356570 | 20 | 16 | 30 | 27 |
| 356571 | 25 | 19 | 34 | 33 |
| 356572 | 32 | 22 | 38 | 42 |
| 356573 | 40 | 26 | 43 | 50 |
| 356574 | 50 | 31 | 48 | 61 |
| 356575 | 63 | 38 | 56 | 75 |
| 356576 | 75 | 44 | 67 | 89 |
| 356577 | 90 | 51 | 78 | 106 |
| 356578 | 110 | 61 | 81 | 128 |
| 356579 | 125 | 69 | 103 | 145 |
| 356580 | 140 | 76 | 114 | 162 |
| 356581 | 160 | 86 | 127 | 181 |
| 356582 | 200 | 106 | 145 | 227 |
| 356583 | 225 | 120 | 165 | 255 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
