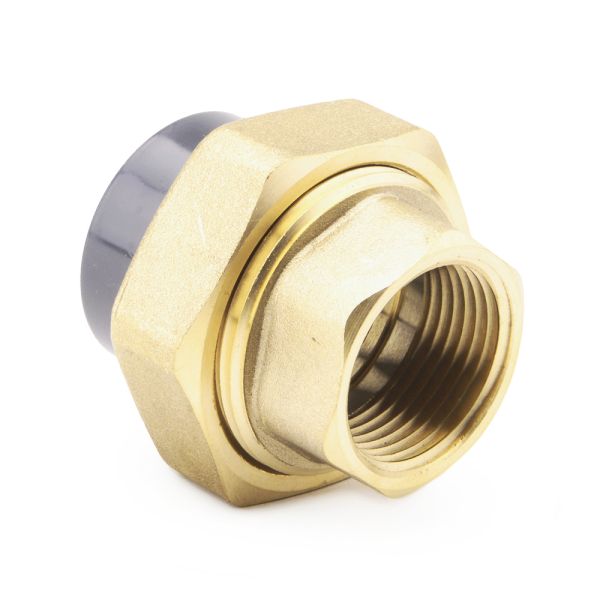

PVCu Metric Composite Union Plain F x Thread F Brass

Loading...
Useful Information

Effast plain F x thread F PVC composite union fittings are available in sizes 20mm x 1/2" to 90mm x 3".

This fitting is bonded, with solvent cement, to a length of PVC pipe in order to provide a brass BSP female thread, whilst providing the ability to be easily removed.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised, brass
Pressure Rating 15 bar at 20°C
Operating Temperature 5°C to +60°C



PVC Composite Union Plain F x Thread F Diagram

Product Code Nominal Size (mm x inch) E (mm) L1 (mm) Z1 (mm) Z2 (mm)
359925 20 x 1/2 28 45 3 8
359926 25 x 3/4 36 49 3 8
359927 32 x 1 42 52 3 8
359928 40 x 1 1/4 53 60 3 8
359929 50 x 1 1/2 59 68 3 9
359930 63 x 2 74 81 3 10
359931 90 x 3 105 103 5 14



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
359925PVCu Comp Union Plain x Threaded Female Brass 20mm x 1/2" £63.85 78%
£14.05
359926PVCu Comp Union Plain x Threaded Female Brass 25mm x 3/4" £85.77 78%
£18.87
359927PVCu Comp Union Plain x Threaded Female Brass 32mm x 1" £110.52 78%
£24.31
359928PVCu Comp Union Plain x Threaded Female Brass 40mm x 1 1/4" £174.07 78%
£38.30
359929PVCu Comp Union Plain x Threaded Female Brass 50mm x 1 1/2" £206.21 78%
£45.37
359930PVCu Comp Union Plain x Threaded Female Brass 63mm x 2" £323.45 78%
£71.16
359931PVCu Comp Union Plain x Threaded Female Brass 90mm x 3" £706.70 78%
£155.47
