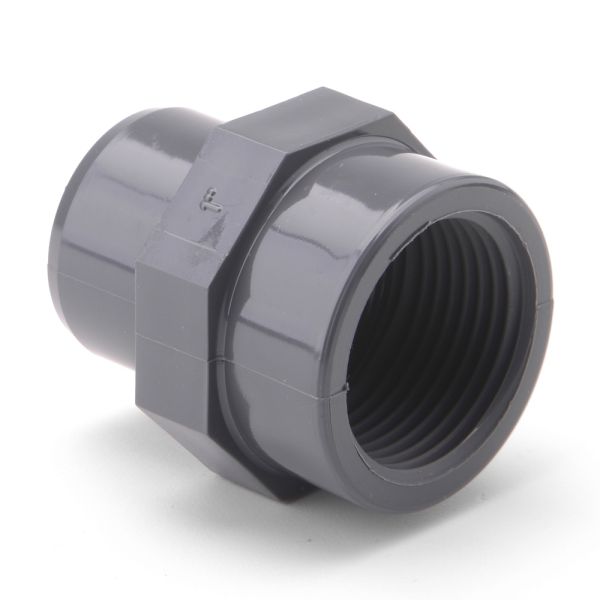

PVCu Metric Adaptor Plain M x Thread F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Effast plain M x thread F PVC adaptor fittings are available in sizes 16mm x 3/8" to 110mm x 4".

This fitting is used to add a female BSP thread connection to a PVC pipe.

The plain ends should be bonded into the pipe using PVC solvent cement.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

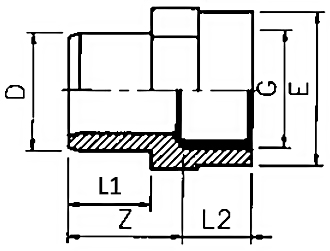

PVC Adaptor Plain M x Thread F Diagram

Product Code	Nominal Size (mm x Inch)	L1 (mm)	L2 (mm)	E (mm)	Z (mm)
356418	16 x 3/8	14	12	23	22
356419	20 x 1/2	16	15	28	24
356420	20 x 3/4	16	16	34	24
356421	25 x 1/2	19	15	28	27
356422	25 x 3/4	19	16	34	27
356423	25 x 1	19	19	42	27
356424	32 x 3/4	22	16	34	30
356425	32 x 1	22	19	42	27
356426	40 x 1	26	19	42	36
356427	40 x 1 1/4	26	21	51	36
356428	50 x 1 1/2	31	21	58	41
356429	50 x 2	31	26	72	41
356430	63 x 2	38	26	72	48
359901	75 x 2	44	26	72	53
359902	75 x 2 1/2	44	30	89	58
359903	75 x 3	44	33	103	58
359904	90 x 2 1/2	51	30	89	65
359905	90 x 3	51	33	103	65
359906	90 x 4	51	39	130	65
359907	110 x 3	61	33	103	76
359908	110 x 4	61	39	130	76

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356418	PVCu Adaptor Male Spigot Plain x Threaded Fem 16mm x 3/8"	£8.03	78%	You Pay: £1.77
356419	PVCu Adaptor Male Spigot Plain x Threaded Fem 20mm x 1/2"	£8.26	78%	You Pay: £1.82
356420	PVCu Adaptor Male Spigot Plain x Threaded Fem 20mm x 3/4"	£8.26	78%	You Pay: £1.82
356421	PVCu Adaptor Male Spigot Plain x Threaded Fem 25mm x 1/2"	£9.85	78%	You Pay: £2.17
356422	PVCu Adaptor Male Spigot Plain x Threaded Fem 25mm x 3/4"	£9.85	78%	You Pay: £2.17
356423	PVCu Adaptor Male Spigot Plain x Threaded Fem 25mm x 1"	£9.85	78%	You Pay: £2.17
356424	PVCu Adaptor Male Spigot Plain x Threaded Fem 32mm x 3/4"	£11.81	78%	You Pay: £2.60
356425	PVCu Adaptor Male Spigot Plain x Threaded Fem 32mm x 1"	£11.81	78%	You Pay: £2.60
356426	PVCu Adaptor Male Spigot Plain x Threaded Fem 40mm x 1"	£13.80	78%	You Pay: £3.04
356427	PVCu Adaptor Male Spigot Plain x Threaded Fem 40mm x 1 1/4"	£13.80	78%	You Pay: £3.04
356428	PVCu Adaptor Male Spigot Plain x Threaded Fem 50mm x 1 1/2"	£23.81	78%	You Pay: £5.24
356429	PVCu Adaptor Male Spigot Plain x Threaded Fem 50mm x 2"	£23.81	78%	You Pay: £5.24
356430	PVCu Adaptor Male Spigot Plain x Threaded Fem 63mm x 2"	£29.05	78%	You Pay: £6.39
359901	PVCu Adaptor Male Spigot Plain x Threaded Fem 75mm x 2"	£47.93	78%	You Pay: £10.54
359902	PVCu Adaptor Male Spigot Plain x Threaded Fem 75mm x 2 1/2"	£47.93	78%	You Pay: £10.54
359903	PVCu Adaptor Male Spigot Plain x Threaded Fem 75mm x 3"	£47.93	78%	You Pay: £10.54
359904	PVCu Adaptor Male Spigot Plain x Threaded Fem 90mm x 2 1/2"	£68.87	78%	You Pay: £15.15
359905	PVCu Adaptor Male Spigot Plain x Threaded Fem 90mm x 3"	£60.37	78%	You Pay: £13.28
359906	PVCu Adaptor Male Spigot Plain x Threaded Fem 90mm x 4"	£68.87	78%	You Pay: £15.15
359907	PVCu Adaptor Male Spigot Plain x Threaded Fem 110mm x 3"	£87.11	78%	You Pay: £19.16
359908	PVCu Adaptor Male Spigot Plain x Threaded Fem 110mm x 4"	£87.11	78%	You Pay: £19.16
