PVCu Check Valve Ball Vertical Plain

Loading...
Useful Information

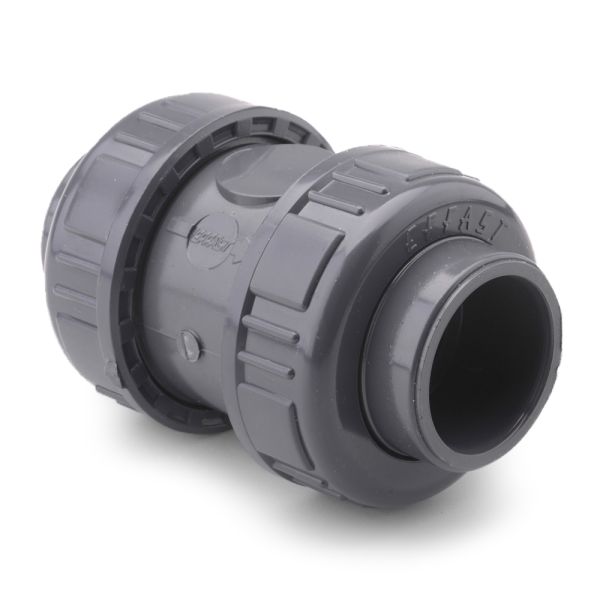

These Effast check valves are manufactured from PVC with a high surface-machined, free moving ball, and plain ends.

These valves are designed to be installed vertically and are available in a range of sizes from 1/2" to 2".

Features an internal cleaning design and a secure seal, even with low pressure usage.



Manufacturer Effast
Material Polyvinyl chloride - unplasticised (PVCu)
Seal Material EPDM
Temperature 0 - 60°C
Max Pressure 16 bar at 20°C
Connection Plain union ends



PVCu Check Valve Ball Size Diagram

Product Code D (Inch) L (mm) Z (mm) E (mm) Weight (g)
403070 1/2 16 48 49 105
403071 3/4 19 54 60 174
403072 1 22 62 69 256
403073 1 1/4 26 69 80 392
403074 1 1/2 31 81 96 617
403075 2 39 94 116 1079



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
403070PVCu Check Valve Ball EPDM Plain 1/2" £78.27 65%
£27.39
403071PVCu Check Valve Ball EPDM Plain 3/4" £80.22 65%
£28.08
403072PVCu Check Valve Ball EPDM Plain 1" £82.79 65%
£28.98
403073PVCu Check Valve Ball EPDM Plain 1 1/4" £97.17 65%
£34.01
403074PVCu Check Valve Ball EPDM Plain 1 1/2" £141.39 65%
£49.49
403075PVCu Check Valve Ball EPDM Plain 2" £187.01 65%
£65.45
