PVCu Pipe Inch Class 7
Useful Information

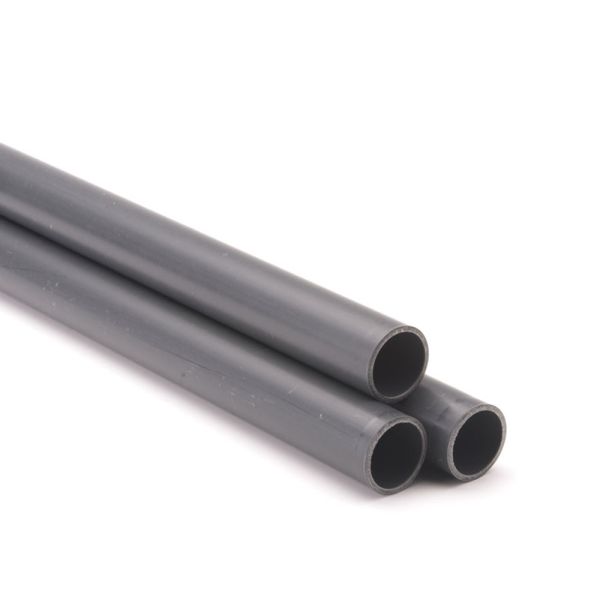

Effast PVC pipe Class 7 is available in sizes 1/2" to 2", in lengths of 3m or 6m.
The PVC pipes in this section are all British Standard sized. This standard is based on the nominal bore of the pipes across the full range and not the diameter. For clarification, please see the table below. If in doubt, or if you require a specific inside diameter, please ring us to avoid ordering the wrong pipework.
Please note: this PVCu pipe is not suitable for use with compressed air.
| Manufacturer | Effast |
| Material | PVCu - polyvinyl chloride unplasticised |
| Pressure Rating | 12 bar at 20°C |
| Operating Temperature | 5°C to +60°C |
| Standards | BS 4346, EN 1452 Parts 1, 2 and 3 (supersedes BS 3505) |
| Product Code | Nominal Size (inch) | Average Outside Diameter (mm) | Average Bore Inside Diameter (mm) | Average Wall Thickness (mm) | Length (m) | Weight (kg) |
| 383231 | 1/2 | 21.3 | 13.3 | 4 | 3 | 1.28 |
| 383230 | 1/2 | 21.3 | 13.3 | 4 | 6 | 2.55 |
| 383233 | 3/4 | 26.8 | 18.6 | 4.1 | 3 | 1.76 |
| 383232 | 3/4 | 26.8 | 18.6 | 4.1 | 6 | 3.51 |
| 383235 | 1 | 33.6 | 23.8 | 4.9 | 3 | 2.55 |
| 383234 | 1 | 33.6 | 23.8 | 4.9 | 6 | 5.1 |
| 383237 | 1 1/4 | 42.2 | 31.8 | 5.2 | 3 | 3.55 |
| 383236 | 1 1/4 | 42.2 | 31.8 | 5.2 | 6 | 7.1 |
| 383239 | 1 1/2 | 48.2 | 37.2 | 5.5 | 3 | 4.35 |
| 383238 | 1 1/2 | 48.2 | 37.2 | 5.5 | 6 | 8.69 |
| 383241 | 2 | 60.3 | 48.5 | 5.9 | 3 | 6.1 |
| 383240 | 2 | 60.3 | 48.5 | 5.9 | 6 | 12.2 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
