Useful Information

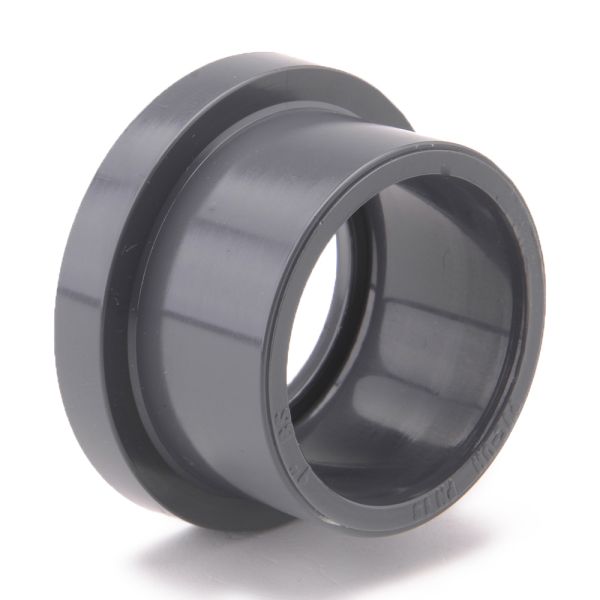

Effast plain PVC stub flanges are available in sizes 1/2" to 8".

This stub flange is designed for use with a backing ring, along with a gasket and bolt set.

To join a length of PVC pipe to this flange, you will require solvent cement.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C, 9 bar over 6".
Operating Temperature 5°C to +60°C



PVC Stub Flange Plain Diagram

Product Code Nominal Size (inch) L (mm) Z (mm) d (mm) S (mm) E (mm)
356995 1/2 17 3 27 6 34
356996 3/4 20 3 33 7 41
356997 1 23 3 41 7 50
356998 1 1/4 27 3 50 8 61
356999 1 1/2 32 3 61 8 73
357000 2 39 3 76 9 90
359421 2 1/2 44 3 90 10 106
357001 3 52 5 108 11 125
357002 4 63 5 133 12 150
357003 5 76 6 165 13 188
357004 6 90 7 193 13 218
357005 8 119 7 248 19 274



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356995PVCu Stub Flange Plain 1/2" £4.03 74%
£1.05
356996PVCu Stub Flange Plain 3/4" £4.24 74%
£1.10
356997PVCu Stub Flange Plain 1" £5.07 74%
£1.32
356998PVCu Stub Flange Plain 1 1/4" £8.18 74%
£2.13
356999PVCu Stub Flange Plain 1 1/2" £12.26 74%
£3.19
357000PVCu Stub Flange Plain 2" £19.66 74%
£5.11
359421PVCu Stub Flange Plain 2 1/2" £32.11 74%
£8.35
357001PVCu Stub Flange Plain 3" £39.60 74%
£10.30
357002PVCu Stub Flange Plain 4" £52.22 74%
£13.58
357003PVCu Stub Flange Plain 5" £108.22 74%
£28.14
357004PVCu Stub Flange Plain 6" £133.66 74%
£34.75
357005PVCu Stub Flange Plain 8" £408.18 74%
£106.13
