PVCu Full Face Table D/E

Loading...
Useful Information

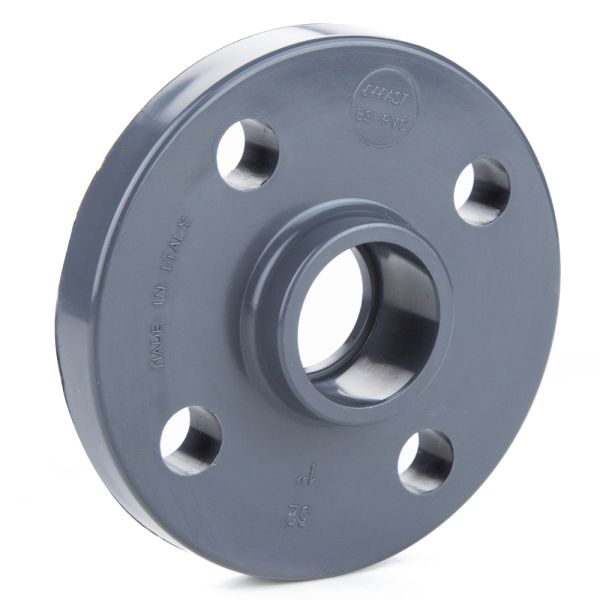

Effast plain PVC full face flanges, drilled to BS 10 Table D & E, are available in sizes 1/2" to 4".

This full face flange is designed to connect PVC pipe. Solvent cement is required to join the flange and pipe.

You will also require a gasket and a bolt set for flanging to a valve, a piece of machinery, or another flanged PVC pipe.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C
Operating Temperature 5°C to +60°C



PVC Full Face Table D & E Flange Plain Diagram

Product Code Nominal Code (inch) L (mm) Z (mm) E (mm) f (mm) I (mm) S (mm) No. of Holes
359784 1/2 17 5 95 14 67 11 4
359785 3/4 20 5 105 14 73 12 4
356739 1 23 5 115 14 83 14 4
356740 1 1/2 32 5 152 18 98 16 4
356741 2 38 5 165 18 115 18 4
356742 3 51 7 200 18 146 20 8
356743 4 63 8 220 18 178 22 8
