PVCu Full Face PN10/16 Threaded

Loading...
Useful Information

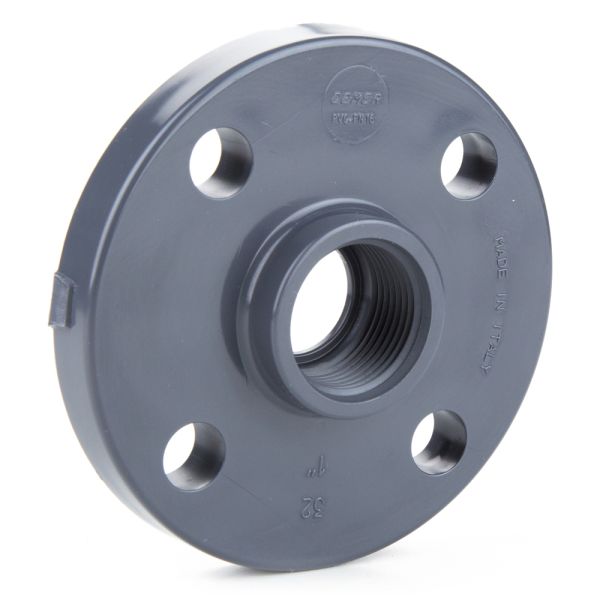

Effast threaded PVC full face flanges (PN10/16) are available in sizes 1/2" to 4".

This full face flange is designed to connect together threaded Class 7 PVC pipe.

You will also require a gasket and a bolt set for flanging to a valve, a piece of machinery, or another flanged PVC pipe.

Drilled to BS EN1029-1 (formerly known as BS 4504) PN10/16.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar at 20°C
Operating Temperature 5°C to +60°C



PVC Full Face PN10/16 Flange Threaded Diagram

Product Code Nominal Size (inch) L (mm) Z (mm) E (mm) f (mm) I (mm) S (mm) No. of Holes
359812 1/2 15 5 95 14 65 8 4
359813 3/4 18 5 105 14 75 9 4
359814 1 19 5 115 14 85 16 4
359815 1 1/4 21 5 142 18 100 17 4
359816 1 1/2 21 5 152 18 110 17 4
359817 2 26 5 165 18 125 20 4
359818 2 1/2 30 6 185 18 145 22 4
359819 3 33 7 200 18 160 22 8
359820 4 40 8 220 18 180 23 8
